Model EL-USB-5

Event, Count, and State Data Logger

$105.99
In
Stock
Need higher channel count and capacity? please consider DI-2160.
  • Includes an EL-USB-5 data logger, measurement leads, a battery (pre-installed), and downloadable software
  • Functions as an event, state, or counter logger
  • Logging rate of up to five times per second for events, two times per second for state changes and 100 times per second when counting
  • Stores up to 32,510 readings in event mode
  • Stores up to 32,510 readings in state change mode
  • Accepts input voltages of up to 24V
  • Volt free contacts option (normally open contact only)
  • Rising and falling edge triggering
  • LED flash on event/state change
  • Connection via two screw terminals
  • USB Interface for Set-up and Data Download
  • Replaceable Internal Lithium Battery
  • Quantity Discount
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page

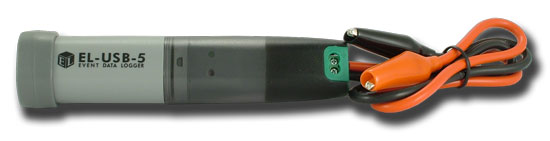

EL-USB-5 Data Logger
This data logger has a single channel.This device measures events, states, and counts.This data logger can record up to 100 state changes per second.This data logger has a USB interface.
This data logger records data to internal memory.Get same day shipping when you order this data logger before 3PM ETThis data acquisition system has a 30-day Money back guaranteeUse coupon code EL10USB for 10% off your Lascar data logger purchase.

Description

The EL-USB-5 data logger can record events (detecting an input and storing the time and date of occurrence), record state changes (similar to an ‘event’ but also recording when the input reverts back to normal) and count events (count the number of events that happen in a time period, without any individual event time or date information). Up to 32,510 events or 32,510 state changes can be recorded.

Events and state changes can be triggered by either a rising edge (a voltage going from low to high) or falling edge (a voltage going from high to low). It is also possible to use volt free contacts. Instead of measuring an external voltage, the data logger applies a voltage across the screw terminals and detects when the input closes (i.e. a relay or microswitch).

Fast logging rates allow event capturing at speeds of up to two times per second and state changes at speeds of up to five times per second. Event counting can operate at speeds of up to 100 times per second (when the LEDs are turned off). The user can easily set up the logger, and download the stored data by plugging the data logger into a PC’s USB port and running the purpose designed software under Windows. Data can then be graphed, printed and exported to other applications.

The data logger is supplied complete with software, measurement leads terminated with crocodile clips and a long-life lithium battery which allows logging for up to 1 year. Functionality of the unit is indicated by flashing red and green LEDs, with an option to flash the red LED every time an event occurs.

Accessories

BAT 3V6

3.6V Battery

$5.99
Lascar Data Logger Battery

Description

Replacement 3.6V, 1200mAh lithium battery. Please Note: Continental U.S. shipping ONLY.

Software

EasyLog Software

Configuration Software

FREE Configuration and download software for Lascar Data Loggers.

Lascar EasyLog Software

Specifications

Number of Channels: One
Time between events: 200 milliseconds
Time between state changes: 500 milliseconds
Time between event counts: 10 milliseconds
Input voltage: 3 to 28 VDC
'Volt free contacts' voltage: 2.75 to 3.6 V
'Volt free contacts' current" 35 μA
Timing accuracy: ±3 seconds per 24 hours
Logging Rate: 1 sample every second
1 sample every 10 seconds
1 sample every minute
1 sample every 5 minutes
1 sample every 30 minutes
1 sample every hour
1 sample every 6 hours
1 sample every 12 hours
Memory Capacity: 32,510 samples
Operating Temperature Range: -35 to +80°C (-31 to +176°F)
Battery Life 1 year (Depending on ambient temperature, logging rate, and use of alarm LED)
