Sample Rate



The sample rate shown in the top right hand corner of WinDaq is a throughput sample rate. The throughput sample rate is the rate that your instrument acquires samples for all channels combined.



Sample Throughput Rate



Set a per channel sample rate or a sampling interval.



  1. In the Edit menu click on Sample Rate.... This displays the sample rate dialog box:



Sample rate or sampling interval



  1. Enter the desired per channel sample rate in samples per second in the Sample Rate/Channel text box or select a sample interval in the Sampling Interval dropdown list. Click on one of the Set buttons to have WinDaq automatically set your per channel sample rate to the maximum or minimum allowed for your device.



  1. Click OK or press the ENTER key.

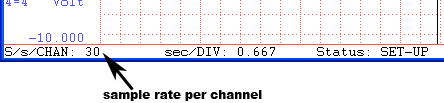

The sample rate per channel is displayed in the lower left corner of the window as S/s/CHAN: (samples per second per channel).
