Remote
control operations above a 10,000 sample per second throughput sample
rate may cause gaps in data.
When the external event
trigger feature is enabled, an “E”
displays
in the status bar immediately following the display mode descriptor.
When the external disk
storage trigger feature is enabled, an “S” displays
in the status bar immediately following the display mode descriptor.
When both external event
trigger and disk storage features are enabled, “ES” displays
in the status bar immediately following the display mode descriptor.
Refer to your instrument’s
hardware manual for the location of the digital inputs for remote control
or use the table in Function.
Proper
Connections

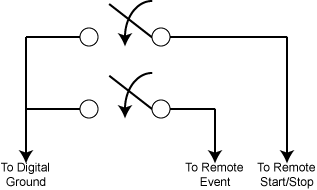

Use the following diagram for proper connection
of the remote control ports.
