Function

Note: Not available with all instruments.



Allows you to remotely trigger event markers and data storage to disk through the remote Storage and Remote Event digital input ports using a TTL level signal or switch.

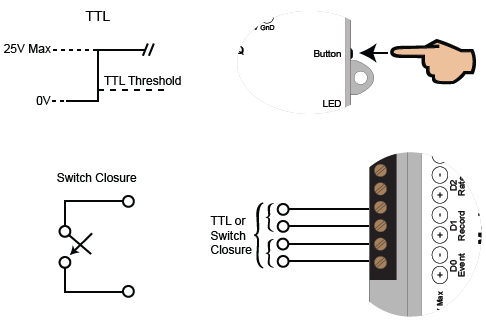

The DI-4108 supports several methods to increase measurement flexibility and data record interpretation. The remote record feature allows you to synchronize WinDaq recordings to external processes by remotely enabling and disabling WinDaq’s stream-to-disk feature. Remote events allow you to insert an event marker in the data stream (see inset) to identify when an event occurred relative to recorded waveform activity. Events can be activated by the pushbutton on the DI-4108 enclosure, though a keyboard keystroke (which also allows you to record a description), or remotely via the remote event input. The stream-to-disk function can also be controlled through the keyboard, or through the remote record input. Valid remote record and event signals are switch closures, or discrete levels with a maximum input of 25 V. Finally, each port is internally pulled-up, so it’s easy to use with external dry-contact switches.



$x08 remot controls



These ports are labeled differently for each instrument. See the table below for location of the remote digital ports.



Instrument

Remote Event

Remote Start/Stop

DI-148U

D1 Event

D0 Record

DI-149 and DI-155 Evnt/DI0 Rcrd/D1

DI-151

Dig 0

Dig 1

DI-154RS*

Dig 1

Dig 1

DI-158 Series

D1 Event

D0 Record

DI-194

D0

D1

DI-194RS*

Dig 1

Dig 1

DI-220 Series

DI0

DI1

DI-400 Series

DI0

DI1

DI-500/510 Series

REMOTE EVENTS

REMOTE STOP/START

DI-700 Series

DI0

DI1

DI-710 Series*

D1 = Remote Event

D0 = Remote Start/Stop

DI-720 Series

R. START/STOP

EVNT

DI-730 Series

R. START/STOP

EVNT

DI-750/760 Series

REMOTE EVENTS

REMOTE STOP/START

DI-1110, DI-1120, DI-2108, DI-2108-P, DI-2008, DI-4108, DI-4208

D0

D1
