Model DI-400 - OBSOLETE (Please consider DI-2108)

ISA Card with free WinDaq software

Out of
Stock

OBSOLETE

  • 250kHz* Burst Sampling Rate
  • Programmable Gain, SE/DI, Per Channel
  • Programmable Sample Rate Per Channel
  • Analog Out and Digital I/O
  • Input and Output Scan Lists
  • Includes WinDaq Chart Recorder Software, WinDaq Waveform Browser Playback and Analysis Software, and Documentation
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page

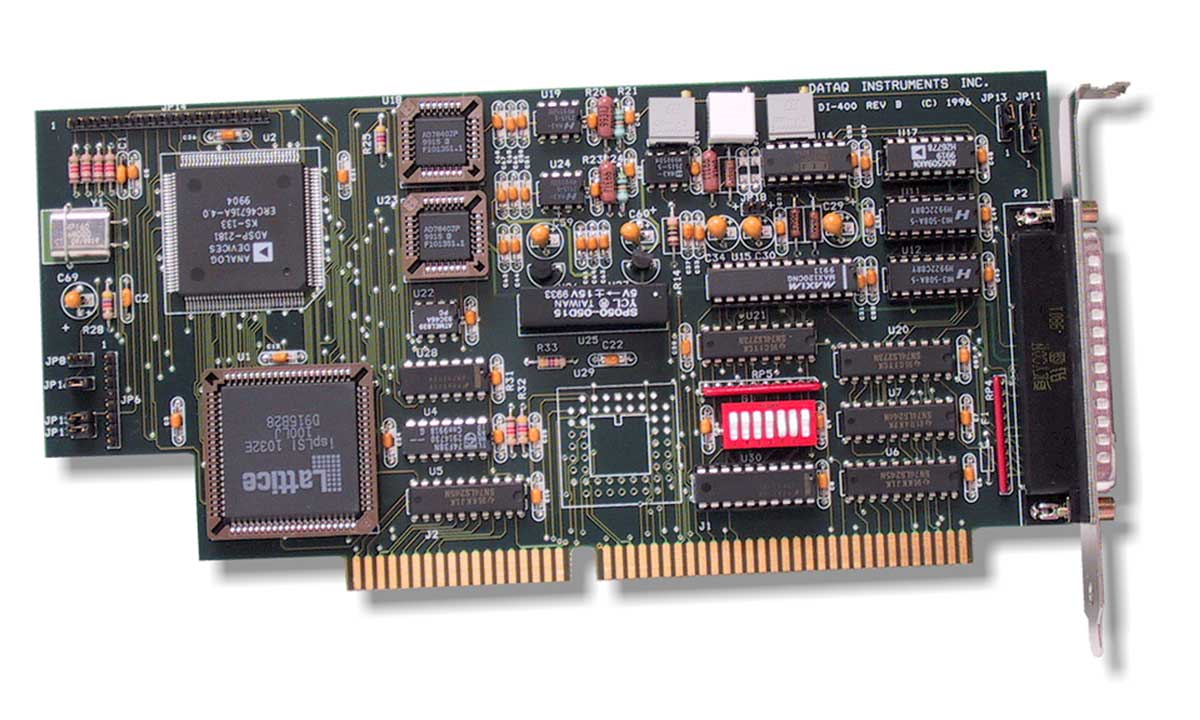

DI-400 Data Acquisition ISA Card
This data logger is manufactured in the United States of America

Description

The DI-400 unifies data acquisition functions with a 32 MIPS DSP to achieve new levels of performance and cost-effectiveness. For those wishing to program, the DI-400 is compatible with the Programmer’s Software Development Kit (SDK). For non-programmers, turnkey software support is provided by WINDAQ software (see pages 6-13). The DI-410, which will be available in the fourth quarter of 1997, is a 14-bit version of the DI400. The DI-410 will offer the same capability as the DI-400, but with four times its A/D and D/A measurement resolution.

Accessories

R250

4-20mA Current Loop Shunt Resistor

$ 2.99
R250 Shunt Resistor

Description

250 Ω ±0.1% Precision, Metal Film, 1/2W, Axial Resistor
Exceptionally low noise; typically 0.10 μV/V
Low voltage coefficient to ±5 ppm/V
Flame retardant coating. RoHS compliant. Learn More
