Hz for Cycle to Marker

This format displays a frequency (in Hz) for the section of waveform (or cycle) defined by the cursor and time marker. To display the frequency (in Hz) of the selected cycle in the marker display field:

  In the Options menu click on Select Marker Display. This displays a cascading pull-down menu containing the different data formats. Click on Hz for Cycle to Marker.

   Choose Options Select Marker Display (ALT, O, K). Press ENTER. This displays a cascading pull-down menu containing the different data formats. Use the ↑ and ↓ cursor control keys to highlight Hz for Cycle to Marker. Press ENTER.

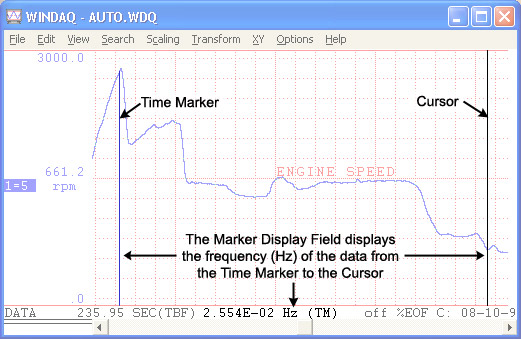

When this format is selected, the marker display field will show XXXXXXXX Hz (TM), where XXXXXXXX is the frequency (in scientific notation) of the cycle defined by the positions of the time marker and cursor.

Note that the time marker must be enabled for display with this format.

If the cursor is positioned directly on top of the time marker, the marker display field displays on because a cycle has not been defined.
