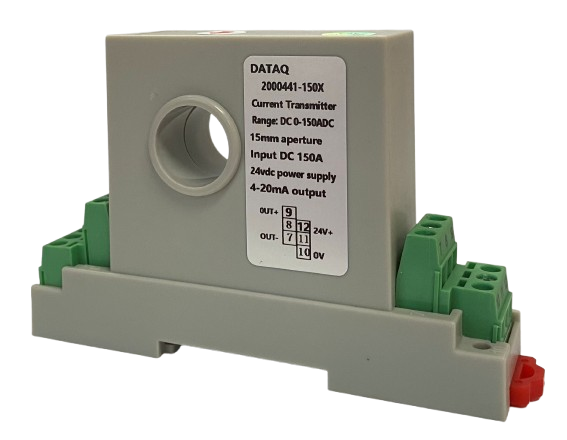

330-668-14442000441-150X Current Sensor
Current Transmitter, DC, 0-150A, 4-20mA Output
$68
In
Stock
Stock
- Convert high-current industrial signals into standard analog signals
- 0-150A Input
- 40-60 Hz Frequency Range
- 4-20mA Linear Voltage Output
- Basic Accuracy ±0.2%FS
- Response Time: ≤10ms (0-90%)
- 8 mm Aperture
- 4-20mA Current Loop Shunt Resistor Included
- 24V DC Power Supply (DIN-P24 Sold Separately)
- CE Compliance
Share
Description
2000441 series current transmitter adopts the Hall Principle to directly convert the high- current signal from the industrial field into the standard analog signal, and the input and output signals are linear. The input, output, and power supply are reliably isolated from each other.
Accessories
Description
100-240V AC Input to 24V DC Output DIN Rail Power Supply for 4-20mA Sensors. 35mm DIN Rail. CE Compliance. Learn More
Description
250 Ω ±0.1% Precision, Metal Film, 1/2W, Axial Resistor
Exceptionally low noise; typically 0.10 μV/V
Low voltage coefficient to ±5 ppm/V
Flame retardant coating. RoHS
compliant. Learn More
Specifications
| Input current range: | 0-150A AC |
| Frequency range: | 40-60Hz |
| Output signal: | 4-20mA |
| Power: | DC12V/24V/220V, AC220V (DIN-P24 Sold Separately) |
| Rated Power Consumption: | ≤1W (power supply DC24V, output 20mA) |
| Output Load Resistance: | RL≤500Ω (output is current signal), RL≥10KΩ (output is voltage signal) |
| Accuracy: | ≤0.2% F.S. |
| Temperature Drift: | 0.2% F.S./℃ (-30℃~+85℃) |
| Response Time: | ≤10ms (0-90% ) (TYP) |
| Insulation Strength: | 3000V AC/1min (input, output, and power) |
| Working Temperature: | -30℃~+85℃ |
| Aperture: | 8 mm |
| EMC: | CE Compliance, GB/T 18268.1, IEC61326-1 |
