Model DI-1110

Data Acquisition USB DAQ and Data Logger System, 12-bit, 160,000 S/s Throughput

$89.00
Out of
Stock

This product is obsolete. Please consider the comparable DI-2108 as a replacement.

  • Includes a DI-1110 instrument, a 6-foot USB cable, a screwdriver for signal connections, and downloadable WinDaq software. WinDaq/Unlock required to acquire more than four channels. See ACCESSORIES.
  • Direct replacement for the DI-149 data acquisition start kit (compare)
  • Eight armored analog differential inputs*
    • Up to ±100 V without damage
    • Fixed measurement range of ±10 V full scale
  • 12-bit analog-to-digital resolution
  • 160 kHz sample throughput rate
  • Seven digital ports*
    • Programmable per port as input or switch
    • Support for rate measurements to 50 kHz
    • Support for 16-bit counter
  • Wide-ranging software support includes:
    • Ready-to-run WinDaq software
    • Published protocol for software development in non-Windows operating systems
  • CE approved
  • Does this product have enough resolution for your application? Find out with our ADC Resolution Calculator

*WinDaq/Unlock required to record more than four total channels - see Accessories

Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page

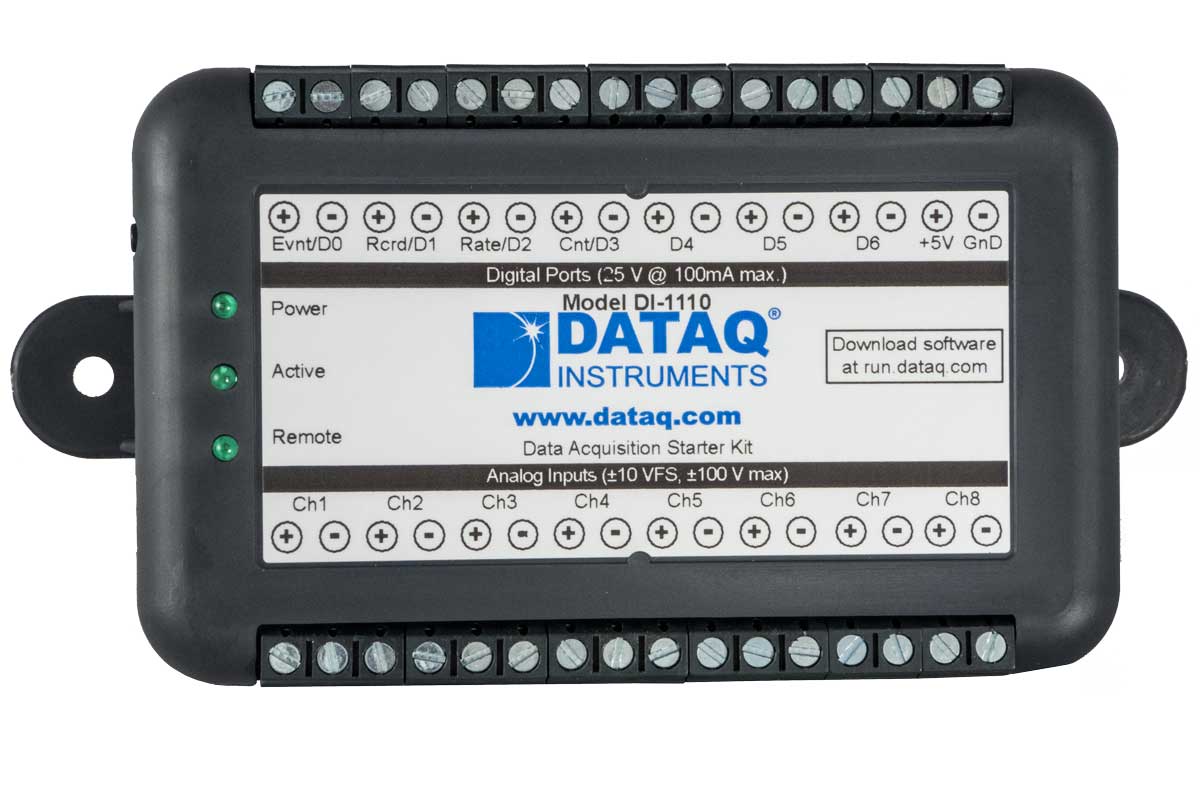

DI-1110 Data Acquisition Starter Kit
This data logger supports 12-bit adc resolutionThis data logger features 8 analog input channelsThis data logger features 7 digital portsThis data logger features a plus/minus 10 Volt full scale rangeThis data acquisition system can sample and record data at up to 160,000 sample per second throughput
This data logger has a USB interfaceThis data acquisition system has a 30-day Money back guaranteeThis data logger is manufactured in the United States of America

Description

DI-1110 USB Data Acquisition starter kit with Windaq software. Features eight differential analog input channels (Unlock Code required for more than 4 channels), 12-bit measurement resolution, and a full scale range of ±10V.

Model DI-1110 delivers premium analog performance at a surprisingly affordable price. Eight analog input channels provide differential measurement flexibility over a ±10 V range. The differential input configuration provides noise rejection, easily adapts to single-ended signal sources, and is protected to ±100 V so that inevitable measurement mishaps will not harm the instrument. The front end feeds a 12-bit ADC with a maximum sampling throughput rate of the 160 kHz to provide pure data acquisition power at an unmatched price point.

The DI-1110 provides 7 digital ports, each configurable as an input or a switch. Input protection is provided to 25 V. When activated as inputs, two ports allow dual functionality as discrete inputs, or can be programmed as a counter or rate input respectively. The rate input features a 50 kHz maximum measurement allocated over twelve programmable measurement ranges (10 Hz to 50 kHz full scale.) The counter input provides 16-bit resolution and a terminal count value of 65,535. The discrete, counter, and rate inputs are members of the same internal scan list used by the analog input channels. So, all enabled elements are acquired synchronously, which allows meaningful comparisons between analog and digital channels. For example, the rate input measuring engine speed allows rpm data to be acquired in lock-step with analog data. Configured as a switch a digital port can be used to control external loads up to 25 V @ 100 mA, and the switch can be controlled asynchronously during scanning.

Accessories

WinDaq/Unlock

DI-1110 Unlock Code

$49.00
WinDaq Unlock Code

Description

Unlocks WinDaq to allow recording all the channels available on your device. Unlock Code ONLY. No CD will be shipped. Please Note: If you are ordering this software for a device you already own, you MUST provide the serial number of your device under "Order Notes" during checkout to receive the unlock code. Please allow one (1) business day for processing.

R250

4-20mA Current Loop Shunt Resistor

$ 2.99
R250 Shunt Resistor

Description

250 Ω ±0.1% Precision, Metal Film, 1/2W, Axial Resistor
Exceptionally low noise; typically 0.10 μV/V
Low voltage coefficient to ±5 ppm/V
Flame retardant coating. RoHS compliant. Learn More

FC-1

USB Ferrite Choke

$5.00
Ferrite Choke

Description

Ferrite choke reduces interference for USB-based data acquisition products.

Software

WinDaq

Data Acquisition Recording and Playback Software

Included FREE with your DI-1110 purchase. Record as many as 4 channels at 160,000 samples per second throughput. Installs drivers and WinDaq recording and playback software. Includes optional Add-on software with a valid installation key. Record 8 channels with an Unlock Code (see Accessories).

WinDaq Data Acquisition Software

Drivers

Drivers only Download

Installs drivers for all contemporary data acquisition hardware products that support WinDaq software.

Starter Kit Drivers

WinDaq/XL

WinDaq-to-Excel Real Time Link

Real-time data logging directly to Microsoft Excel (supports MS Office 2003 or higher). No programming required. Free Trial Version. Purchase full version on WinDaq/XL product page.

WinDaq Data Acquisition Software

DATAQ SDK .Net

Solutions for .NET Programming Environments

FREE .Net control communicates directly with your DATAQ Instruments device using any .Net programming language. Detailed sample programs included. Fully documented help file. Requires .NET Version 4

DATAQ SDK DOT NET

Python Example Programs

Available on GitHub

FREE Python example programs using the fully documented device protocol. All sample programs are well-commented to help you get up and running quickly.

DATAQ Python Example Programs

MATLAB Example Program

Program in Protocol Level

Learn how to program with MATLAB® in protocol level. Does not require MathWorks' Data Acquisition Toolbox.

DATAQ SDK MATLAB DOT NET

LabView Example Programs

Available on GitHub

FREE LabView example programs using the Dataq's ActiveX Controls. All sample programs are well-commented to help you get up and running quickly.

DATAQ LabView Example Programs

Specifications

Analog Inputs
Number of Channels: 8 (Unlock code required to record more than 4 channels using WinDaq)
Configuration: Differential
Full Scale Range: ±10 V full scale fixed
Input impedance: 1MΩ
Isolation: none
Absolute accuracy: @ 25°C, excluding common mode error ±12.5 mV @ 25°C
Absolute maximum input without damage: ±75 V peak, continuous ±100 V peak, one minute or less
System noise: 7.8 mV rms
Maximum common mode voltage: ± 10 V
Common mode rejection ratio: 40 dB (dc - 60 Hz)
Channel-to-channel crosstalk rejection: -80 dB
Digital Inputs
Number of ports: 7
Programmed as a Switch
Maximum drain voltage: 25 V
Maximum sink current: 100 mA
Count/Rate/Inputs
Digital port assignment: Count: Port 2; Rate: Port 3
Internal pull-up value: 4.7 kΩ
Input high voltage threshold: 2.4 V
Input low voltage threshold: 0.8 V
Terminal count: 65,535
Maximum rate frequency: 50 KHz with one enabled channel, 20 KHz with 2-4 enabled channels, 10 KHz with 5-8 enabled channels, else 5 KHz
Minimum rate frequency: 0.5 Hz
Maximum count frequency: 50 kHz
Reserved Digital Inputs
Port 1: WinDaq remote events
Port 2: WinDaq remote start/stop
Power
Power Consumption: <1.0 Watt, via USB interface
ADC Characteristics
Resolution: 12-bit
Above zero ADC counts: 2,047
Below zero ADC counts: 2,048
Voltage resolution (exluding noise): 4.86 mV
4-20mA resolution (exluding noise): 818 adc counts with 250 Ω shunt
Maximum sample throughput rate: 160,000
Minimum sample throughput: 20 S/s (2.2 samples per hour with WinDaq)
Sample rate timing accuracy: 50 ppm
Indicators and Connections
Interface: USB 2.0 (mini-B style connector)
Indicator lights: 3 LEDs: Power, Active, Event
Input Connections: Two 16-position terminal strips
Environmental
Operating Temperature: 0 to 50 °C
Operating Humidity: 0 to 90% RH non-condensing
Storage Temperature: -20 to 60 °C
Storage Humidity: 0 to 90% non-condensing
Physical Characteristics
Enclosure: Polycarbonate ABS, 0.080 inch thickness
Mounting: Desktop; bulkhead
Dimensions: 2.625D × 5.5W × 1.53H in. (6.67D × 13.97W × 3.89H cm.)
Weight: 5.7 oz. (162 grams)
Software Support
WinDaq software: OS support
Programming: Instrument protocol, ActiveX Control

Videos

How to make 4-20mA current measurements using the R250 and a Data Instruments Data Logger
4-20mA Measurements

Learn how to connect a 4-20mA signal using the R250 shunt with Dataq products.
Exporting Data to Excel
Export data to Excel

Learn how to export data from WinDaq Waveform Browser to Microsoft Excel.
Introduction to WinDaq Data Acquisition Software
WinDaq Data Acquisition Software

Introduction to WinDaq Data Acquisition Software.

Similar Products

Quick Product Comparison

Model
(DI-)
Analog
channels
Measurement
Range
Expansion with
other models (DI-)
Max Sample
Rate (Hz)
Low-pass
Filter
ADC
Resolution
Digital
I/O
Stand-alone
Capability
Counter
Channel
Rate
Channel
1100 4 ±10 V - 40,000 - 12 2 In - - -
2108 4 or 8 ±10 V - 160,000 Yes 12-14 7 Bi Yes Yes Yes
2108-P 4 or 8 B 2108-P 160,000 Yes 16 7 Bi Yes Yes Yes
4108 4 or 8 C 4108, 4208, 4718B, 4730 160,000 Yes 12-16 7 Bi Yes Yes Yes
4208 4 or 8 A 4208, 4108, 4730, 4718B 160,000 Yes 12-16 7 Bi Yes Yes Yes

*Expand with ChannelStretch™. Compatibility with other units dependent on model.

Use the following chart to determine Measurement Ranges:

A B C
±2 V
±5 V
±10 V
±20 V
±50 V
±100 V
±2.5 V
±5 V
±10 V
0-5 V
0-10 V
±200 mV
±500 mV
±1 V
±2 V
±5 V
±10 V
