GL100-WL Wireless Extension for Graphtec Data Loggers
Extends Measurement Capability of GL240 and GL840 Data Loggers
Wirelessy connect the GL100-WL to any GL240 or GL840 for an array of measurements including:
- ambient temperature and RH
- 3-axis acceleration
- thermocouple temperature
- thermistor temperature
- illuminance/UV
- CO2
- AC current
GL100-WL
Wireless Coupler
![GL100-WL Wireless Data Logger](/resources/images/products-150/gl-100-data-logger.jpg)
Description
Wireless coupler for GL240 and GL840 Data Loggers. Connect GS series sensors to expand the measurement capability of your data logger. Learn More.
Sensors and Accessories
![Thermistor temperature sensor](/resources/images/products-150/gs-103at-4p.jpg)
Description
Acceleration/Temperature sensor for GL100 Data Loggers. Measures up to 10G and -10 to 50 °C. May be directly connected to the GL840 Data Logger.
![GS-CO2 Carbon Dioxide sensor](/resources/images/products-150/gs-co2.jpg)
Description
Carbon dioxide (CO2) sensor for GL100 Data Loggers. Measures 0 to 9,999 ppm. May be directly connected to the GL840 Data Logger.
GS-LXUV
Illuminence/Ultraviolet sensor
![Illuminence and UV sensor](/resources/images/products-150/gs-lxuv.jpg)
Description
Illuminence/Ultraviolet sensor for GL100 Data Loggers. Measures 0 to 200k lx and 0 to 30 mW /cm2. May be directly connected to the GL840 Data Logger.
![Voltage and Temperature sensor](/resources/images/products-150/gs-4vt.jpg)
Description
Voltage and Temperature sensor for GL100 Data Loggers. Programmable per channel. Supports K and J type thermocouples (K: -200 to 1370 °C; T: -200 to 400 °C). Measures 20, 50, 100, 200, 500 mV; 1, 2, 5, 10, 20, 50 V; 1-5 V (for 4-20 mA using 250 Ω shunt). May be directly connected to the GL840 Data Logger.
![Thermistor temperature sensor](/resources/images/products-150/gs-103at-4p.jpg)
Description
Thermistor Temperature sensor connects to model GS-4TSR. Measures -40 to 105 °C.
![Thermistor temperature sensor](/resources/images/products-150/gs-103at-4p.jpg)
Description
Thermistor Temperature sensor connects to model GS-4TSR. Ultra thin. Measures -40 to 120 °C.
GS-DPA-AC
Current Sensor
![AC Current sensor](/resources/images/products-150/gs-dap-ac.jpg)
Description
AC Current sensor for model GL100-WL data loggers. Three sensors available: GS-AC50A: 50 A AC current sensor; GS-AC100A: 100 A AC current sensor; GS-AC200A: 200 A AC current sensor. May be directly connected to the GL840 Data Logger.
![AC Current sensor](/resources/images/products-150/gs-ac200a.jpg)
Description
Clamp-on AC Current sensor for GS-DPA-AC. 50 A AC current.
![AC Current sensor](/resources/images/products-150/gs-ac200a.jpg)
Description
Clamp-on AC Current sensor for GS-DPA-AC. 100 A AC current.
![AC Current sensor](/resources/images/products-150/gs-ac200a.jpg)
Description
Clamp-on AC Current sensor for GS-DPA-AC. 200 A AC current.
![Dual Port Adapter](/resources/images/products-150/gs-dpa.jpg)
Description
Dual Port Adapter for GL100 or GL840 Data Loggers. Support dual connection with GS-TH, GS-LXUV, and GS-CO2 (other sensors are not supported).
![Sensor Extension Cable](/resources/images/products-150/ds-exc.jpg)
Description
1.5 meter extension cable for use between GL100-WL or GL840 data loggers and GS sensors.
Typical Connections of the GL100-WL

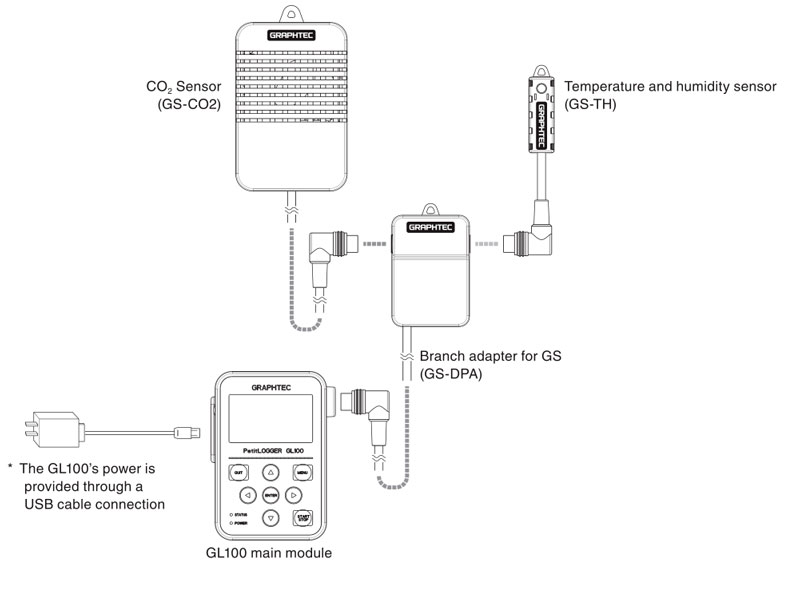

Typical interconnections of a GL100-WL add-on consisting of a GL100-WL, GS-CO2 CO2 sensor, GS-TH Temp and RH sensor, and the GS-DPA Branch Adaptor. The GL100-WL communicates these measurements wirelessly to a GL240 equipped with the B-568 wireless option.

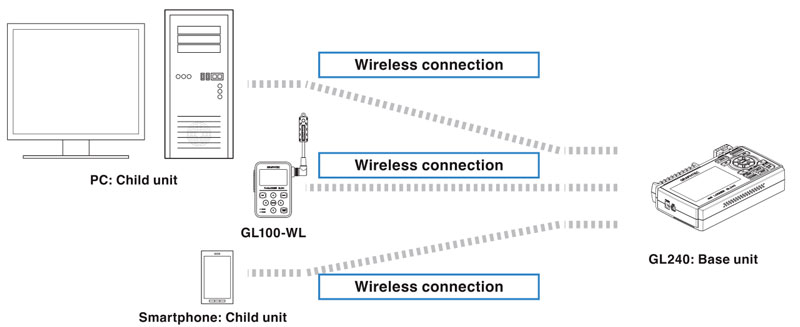

Deployment with a GL240 or GL840 Data Logger

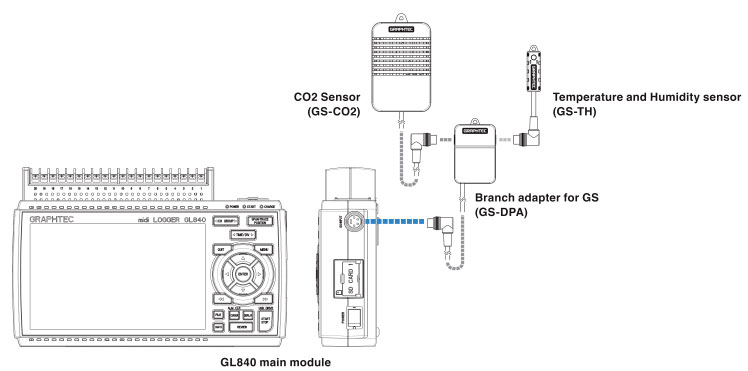

Deployment is the same for a GL240 and a GL840 with the exception that GS sensors can be installed directly on the GL840 data logger.
GL100 add-on modules
Model | Channels | Measurements | Alarms | Comments |
GL100-WL | - | - | 1* | Provides wireless access to the GL240 or GL840 |
GS-TH | 4 | Ambient Temperature and RH | - | -20 to 85 °C; 0.0 to 100% RH |
GS-3AT | 4 | Temp + 3-axis acceleration | - | ±2 G. ±5 G, ±10 G; 0 to 100Hz frequency measurement band; -10 to 50 °C |
GS-4VT | 4 | Thermocouple/Voltage | - | Programmable per channel. Supports K and J type thermocouples (K: -200 to 1370 °C;
T: -200 to 400 °C). Measures 20, 50, 100, 200, 500 mV; 1, 2, 5, 10, 20, 50 V; 1-5 V (for 4-20 mA using 250 Ω shunt) |
GS-4TSR | 4 | Thermistor | - | GS-103AT-4P Option: -40 to 105 °C; GS-103JT-4P Option: -40 to 120 °C |
GS-LXUV | 4 | Illuminance/Ultraviolet | - | Illuminance: 0 to 200k lx; Ultraviolet: 0 to 30 mW /cm2 |
GS-CO2 | 1 | CO2 | - | 0 to 9,999 ppm |
GS-DPA-AC | 4 | AC current sensor (1 or 3 phase) | - | Current, power, accumulated power (energy); GS-AC50A: 50 A AC current sensor; GS-AC100A: 100 A AC current sensor; GS-AC200A: 200 A AC current sensor |
GS-DPA | - | Dual-branch adapter | - | Used to combine (pair) the indicated modules |
8 | GS-TH + GS-LXUV | - | ||
5 | GS-TH + GS-CO2 | - | ||
5 | GS-CO2 + GS-LXUV | - |
* GS modules support a level alarm function that is detected by the GL100-WL and communicated to a wireless-equipped GL840.
