Multi-Use Humidity & Temperature Logger -40 to 185°F (-40 to 85°C & 0-100%RH)
- 0 to 100%RH and -40 to 185°F (-40 to 85°C) measurement range
- 8000 sets of humidity and temperature readings
- Ideal for transportation applications
- Needs USB Cradle to download and setup

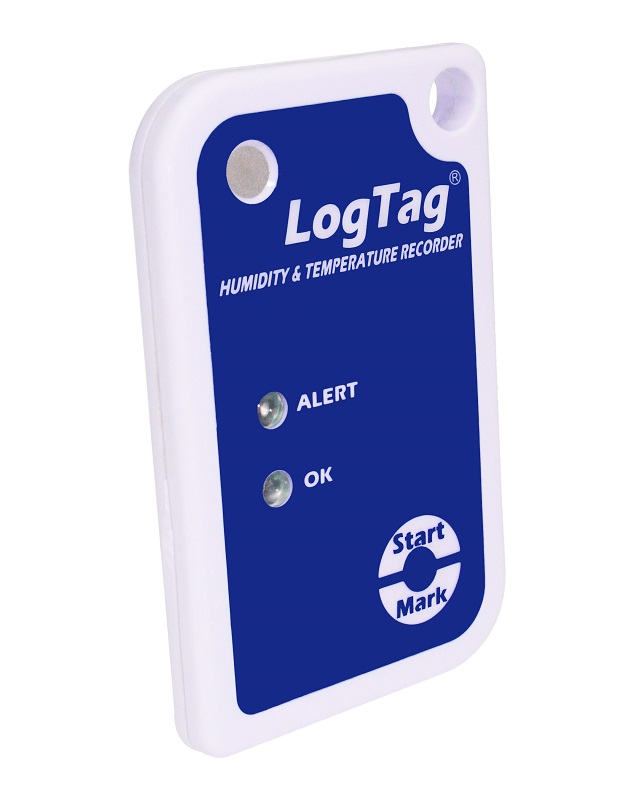

HAXO-8 Multi-use Humidity and Temperature Logger measures and stores up to 8000 sets of high-resolution humidity and temperature readings over a measurement range of 0 to 100%RH and -40°C to +85°C (-40°F to +185°F).
Enclosed in a robust and durable polycarbonate case – the HAXO-8 is equipped with a unique temperature sensor arrangement providing a fast reaction time to temperature change and a real-time clock that provides date/time stamps for each temperature reading.
Using the LogTag Interface and LogTag’s freely available companion software LogTag Analyzer, the LogTag is easily set up for recording conditions including delayed start, sampling interval, number of readings, a continuous or fixed number of readings, and configuration of conditions to activate the ALERT indicator.
Readings are downloaded using LogTag Analyzer which provides facilities for charting, zooming, and listing data statistics and allows exporting the data to other applications such as Excel.
HAXO-8 complies with the relevant international standards for temperature monitoring devices:- FDA 21 CFR Part 11, EC Annex 11, IATA’s 2018 Dangerous Goods Regulations 59th Edition, FCC, CE, RCM, and RoHS. This demonstrates the quality and suitability of the LogTag® HASO-8 for temperature monitoring applications where accuracy and consistency are required.
USB Cradle to retrieve data from loggers
LogTag® Analyzer 3 features configuration profiles, import/export of option settings, configuration and download logging and also allows configuration and download of USB loggers
LogTag® Xpress is a sophisticated alternative to the powerful LogTag® Analyzer software. With a stripped-down feature set, LogTag® Xpress focuses on efficiently configuring and downloading the complete range of LogTag® data logging products, with as little user interaction as possible.
LogTag Online is a Cloud-based online environmental management system providing alarm notifications, compliance, record storage and reporting functions.
|Measurement Range:||0 to 100%RH and -40 to 185°F (-40 to 85°C)|
|Accuracy (overall error):||
|Recording Capacity:||8,003 pairs of humidity and temperature readings. 53 days @ 10min logging, 80 days @ 15min logging.|
|Battery Life||Fixed Battery. 1 year storage, followed by 2 – 3 years of normal use (based on 15 minute logging, download data monthly).|
|Real Time Clock||Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day).
Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C).
