WinDaq/XY Viewers (Free)

WinDaq/XY viewers contains two parts: WinDaq/XY Live XY Viewer and WWB/XY Viewer.

Both applications were specially designed for the GE Mining Division for trouble shooting their mining equipments in the field.

• WinDaq/XY Live Viewer

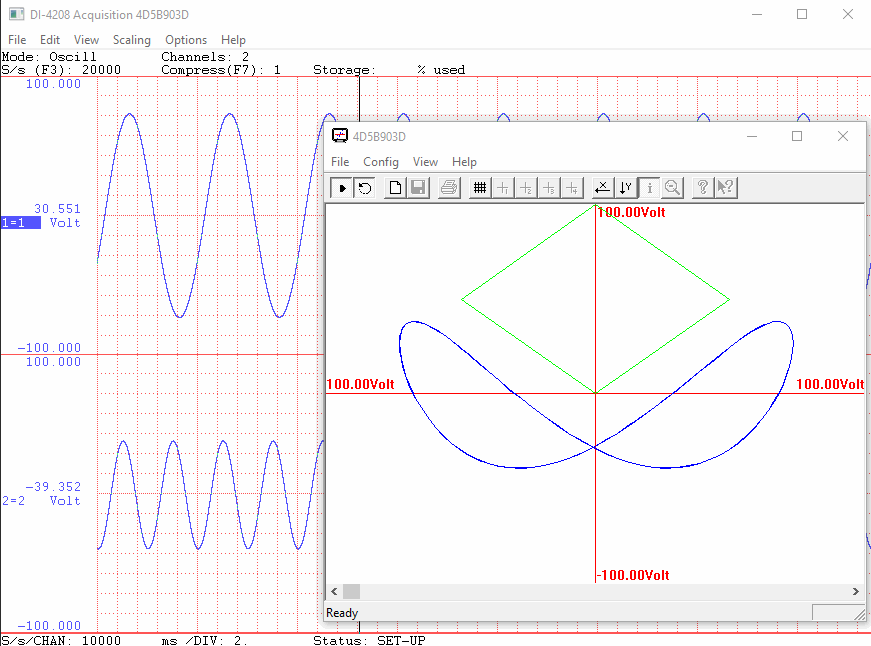

  This program allows you to generate a multiple channel XY plot in real time. It "eavesdrops" on the data that is being acquired and simultaneously generates an XY plot of this very same data.

  • Up to 4 pairs of XY plottings on the same window
  • Depth of each XY plot: 2048 samples
  • Support ALL products running WinDaq acquisition software
  • Up to 16 auxiliary lines for visual assistance
  • To use it, please download and install WinDaq Add-on package from DATAQ Instruments




• WWB/XY Viewer

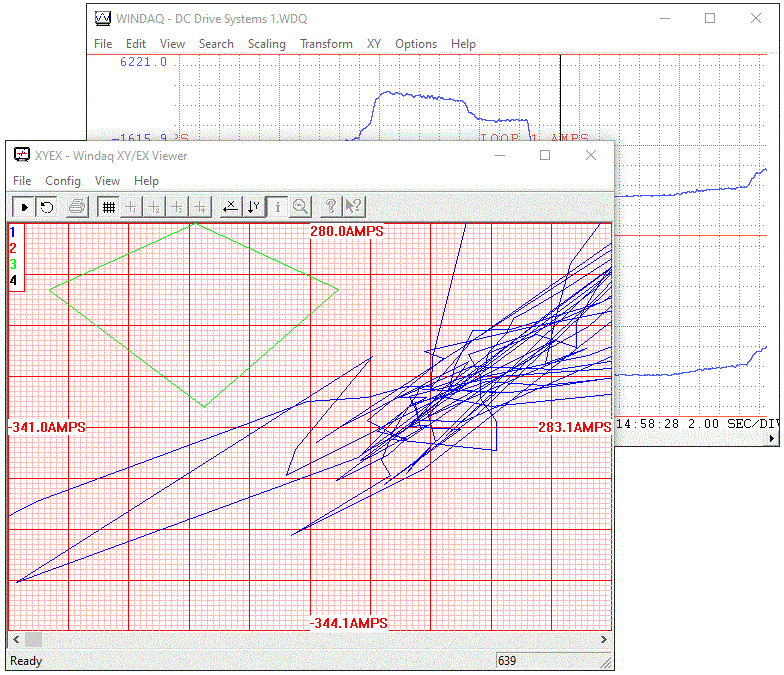

  This software allows you to generate a live multiple channel XY plot directly synced to a pre-recorded WinDaq Waveform Brower file.

  • Up to 4 pairs of XY plottings on the same window (The XY plot under WWB allows only 1 pairs)
  • Depth of each XY plot: 8192 samples
  • Support .WDQ and .WDH file formats
  • Plotting modes: Between time markers, or specified number of samples before or after the cursor
  • Up to 16 auxiliary lines for visual assistance
  • To use it, please downloadn and install  GE Mining Division version of WinDaq Waveform Browser
