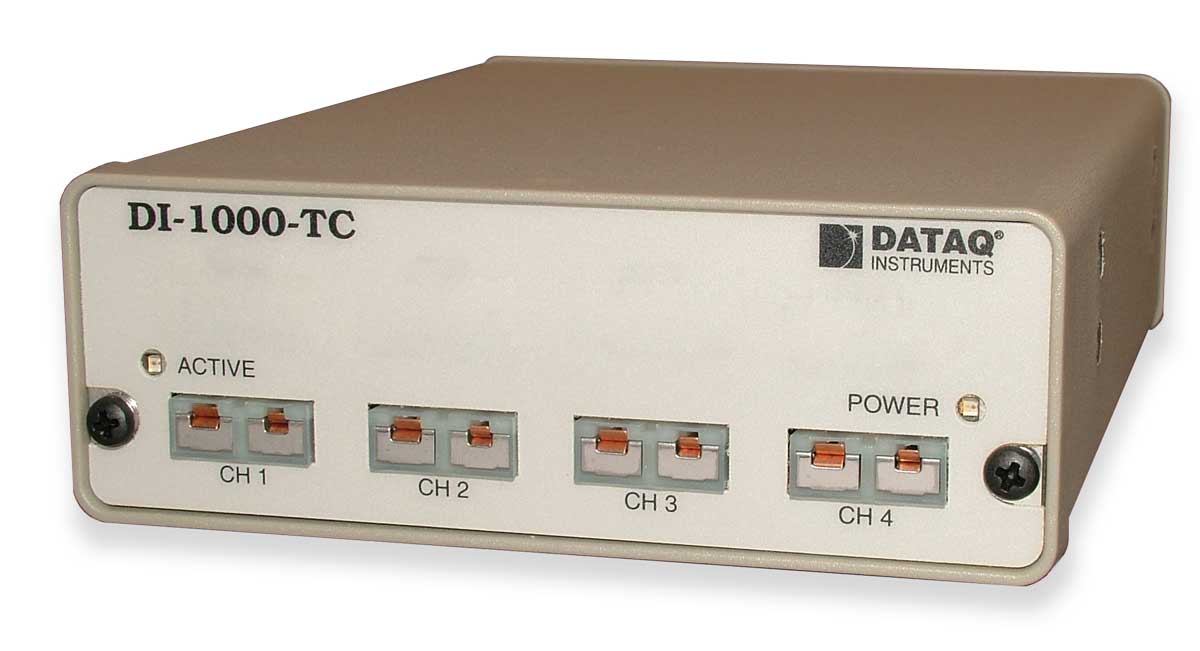

330-668-1444Model DI-1000TC-4 - OBSOLETE (replaced by DI-2008)
Isolated, Expandable Four-channel Thermocouple Data Acquisition System
Stock
OBSOLETE
- Four-channel Thermocouple Data Acquisition System
- 1000VDC and Peak AC Input-to-Output and Channel-to-Channel Isolation
- Supports J, K, T, E, S, B, and R Thermocouple Types
- Built-in Open Thermocouple Detection
- High Accuracy and Resolution Design
- Extremely Wide CJC Range
- Native RS-422 communication with Optional USB adaptor
- Daisy-chain up to eight 4-channel units
- RS-422 interface allows remote temperature data acquisition and module expansion over a distance of up to 4,000 feet (over 1.2 kilometers)
- Note: This product is NOT CE approved.
- Note: In order to connect a DI-1000TC to your PC, you MUST purchase the USB adapter (DI-1000-USB).
Share
Description

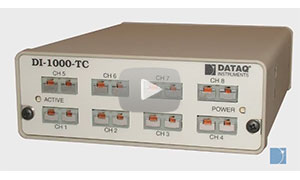

DATAQ Instruments’ DI-1000TC Series products are a line of instrumentation modules designed for temperature measurements using thermocouples. The unit is provided in 4- or 8-channel versions, and each channel may be configured in software to support one of seven thermocouple types: J, K, T, E, S, B, or R. Temperature measurements may range from -200°C to +1820°C (-328°F to +3308°F), depending upon thermocouple type. Each DI-1000TC thermocouple channel features a panel-mounted, miniature spade connector, and all input channels are electrically isolated from ground and each other up to 1000VDC or peak AC.
Model DI-1000TC is designed for use across the entire spectrum of temperature measurement applications. Its small size and wide measurement range make it a perfect temperature measurement device for laboratory applications. Its isolation feature allows it to be used in more demanding industrial applications that experience the large common mode voltages (off-ground measurements) that are typical of grounded thermocouples. Such measurement situations will prevent non-isolated instruments from making a measurement at best, or destroy them in the worst case.
Accessories
Description
USB to RS-422 Adapter for DI-1000TC instruments. Connects the DI-1000TC to your PC's USB port. One is required per chain of DI-1000TCs.
Description
Type J miniature male thermocouple connector.
DI-TCE
Thermocouple Connector
Description
Type E miniature male thermocouple connector.
Description
Type J miniature male thermocouple connector.
Description
Type K miniature male thermocouple connector.
DI-TCR
Thermocouple Connector
Description
Type R miniature male thermocouple connector.
DI-TCS
Thermocouple Connector
Description
Type S miniature male thermocouple connector.
Description
Type T miniature male thermocouple connector.
Description
Power Connector for DI-1000TC, DI-710, and DI-718B products.
Description
Spare power supply for DI-710, DI-718B, and DI-1000TC products.
Description
Spare US Adapter for AC power supply 101017-2 and 101085.
Description
Spare European Adapter for AC power supply 101017-2 and 101085.
Description
Spare UK Adapter for AC power supply 101017-2 and 101085.
Description
Spare Australian Adapter for AC power supply 101017-2 and 101085.
Description
Re-calibration Service, this calibration certificate is included with new instruments. NIST-traceable certificate for all DI-1000TC data acquisition and data logger products. Does not include data. Shipping charges do apply when ordering online. Learn more about Calibrating your device.
Description
Pair of stacking brackets (with mounting screws) for DI-4718 Series, DI-4108 Series, DI-4208 Series, DI-808 Series, DI-710 Series, DI-718B Series, and DI-100TC Series instruments
Description
3-foot (0.91m) type T Teflon®-coated, miniature thermocouple connector. SET OF 4. Maximum operating temperature of -29 to 180°C (-20 to 356°F) on the coating of the wires. Heavy duty construction, IEC and ISA color coding, removable reversible write on window. 24-Gauge teflon wrap for use in moist atmospheres. Insulation provides a seal against liquid and vapor.
View assembly instructions.
Description
3-foot (0.91m) type K Teflon®-coated, miniature thermocouple connector. SET OF 4. Maximum operating temperature of -29 to 180°C (-20 to 356°F) on the coating of the wires. Heavy duty construction, IEC and ISA color coding, removable reversible write on window. 24-Gauge teflon wrap for use in moist atmospheres. Insulation provides a seal against liquid and vapor.
View assembly instructions.
Description
3-foot (0.91m) type J Teflon®-coated, miniature thermocouple connector. SET OF 4. Maximum operating temperature of -29 to 180°C (-20 to 356°F) on the coating of the wires. Heavy duty construction, IEC and ISA color coding, removable reversible write on window. 24-Gauge teflon wrap for use in moist atmospheres. Insulation provides a seal against liquid and vapor.
View assembly instructions.
Software
WinDaq
Data Acquisition Recording and Playback Software
Included FREE with your DI-1000TC purchase. 5Hz per channel maximum sample rate.
WinDaq/XL
WinDaq-to-Excel Real Time Link
Real-time data logging directly to Microsoft Excel (supports MS Office 2003 or higher). No programming required. Free Trial Version. Purchase full version on WinDaq/XL product page.
