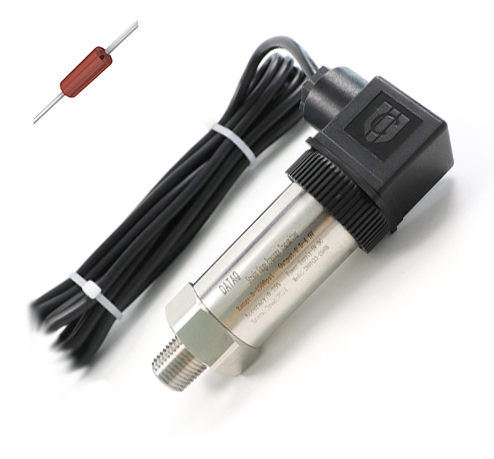

330-668-14444-20mA Linear Output Industrial Grade Pressure Sensors
Description
This industrial-grade pressure sensor measures up to 14,500 PSI with exceptional accuracy and impact resistance. It’s ideal for monitoring oil, fuel, air, brake fluid (DOT3/DOT4), and water pressure. Compatible with most standard pressure sensor applications, it also integrates seamlessly with data loggers for reliable data storage.
Product Features
- Measure pressure from 100 PSI to 14500 PSI
- Made with 316 stainless steel and high temperature auto-graded plastic
- 4-20mA linear output. Click here for 0.5-4.5V output pressure transducers
- Accuracy: 0.25%FS.
- Works for oil, fuel, brake fluid, water or air pressure
- High impact resistance to survive water hammer effects
- IP65-66 Rated
Products in the Series
Accessories
Not all pressure transducers are built the same
Contact DATAQ Sales for help selecting the correct pressure transducer for your application.
| Product lines |
2000433-H (0.5-4.5V output) 2000433-HX (4-20mA output) 2000433-CH (Customized model) |
2000361-H (0.5-4.5V output) 2000361-HX (4-20mA output) 2000361-CH (Customized model) |
2000361-H-E (0.5-4.5V output) 2000361-HX-E (4-20mA output) |
2000361 |
 |
 |
 |
|
|
| Material/Technologies | Oil-filled diffused silicon strain gauge | Oil-filled diffused silicon piezoresistive | Oil-filled diffused silicon piezoresistive | Dry ceramic capactitive |
| Output | 2000433-H: 0.5-4.5V 2000433-HX: 4-20mA 2000433-CH: 0.5-4.5V or 4-20mA |
2000361-H: 0.5-4.5V 2000361-HX: 4-20mA 2000361-CH: 0.5-4.5V or 4-20mA |
2000361-H-E: 0.5-4.5V 2000361-HX-E: 4-20mA |
2000361: 0.5-4.5V |
| Pressure Type | Gauge pressure (Can be customized to absolue pressure) |
Gauge pressure (Can be customized to absolue pressure) |
Gauge pressure |
Gauge pressure |
| Accuracy/Sensitivity | ±0.25%FS 15-25°C |
±0.5%FS 15-25°C |
±0.5%FS 15-25°C |
±2% FS |
| Medium | Gas or liquid compatible with 316L stainless steel and oil-filed silicon, excluding hydrogen and oxygen gas Not intended for acidic medium nor cryogenic applications |
Gas or liquid compatible with 316L stainless steel and oil-filed silicon, excluding hydrogen and oxygen gas Not intended for acidic medium nor cryogenic applications |
Gas or liquid compatible with 316L stainless steel and oil-filed silicon, excluding hydrogen and oxygen gas Not intended for acidic medium nor cryogenic applications |
Gas or liquid compatible with ceramic, excluding hydrogen and pure oxygen gas Not intended for acidic medium nor cryogenic applications |
| Housing Info | Stainless Steel 304, Cu, Al |
Stainless Steel 304, Cu, Al |
Stainless Steel 304, Cu, Al |
Stainless Steel 304, Cu, Al |
| Wetted Material | Stainless Steel 316L | Stainless Steel 316L | Stainless Steel 316L | |
| Burst Pressure | 3 times span for below 10000 PSI 2 times for higher |
For transducers of full range up to 5000 PSI, 4 times span For transducers of full range of 10000 PSI, 26000 PSI |
For transducers of full range up to 5000 PSI, 4 times span For transducers of full range of 10000 PSI, 26000 PSI |
4 times span |
| Overload Pressure | 2 times span for below 10000 PSI 1.5 times for higher |
For transducers of full range up to 5000 PSI, 2.5 times span For transducers of full range of 10000 PSI, 14500 PSI |
For transducers of full range up to 5000 PSI, 2.5 times span For transducers of full range of 10000 PSI, 14500 PSI |
2.5 times span |
| ADC Response Time | 100ms | 1ms | 1ms | 2ms |
| Working Temperture Range | -40°C to 80°C | -40°C to 80°C | -40°C to 80°C | -20°C to 70°C |
| Insulation Resistance | 100MΩ/500VDC | 100MΩ/500VDC | 100MΩ/500VDC | 100MΩ/500VDC |
| 3D Model | PDF for 1/8 NPT version | |||
| Process Connection (Thread) | 1/4" NPT-18 | 1/4" NPT-18 thread for 10000 psi 1/8" NPT-27 thread for the others (1/4 NPT" pipe fitting can be found here) |
1/4" NPT-18 thread for 10000 psi 1/8" NPT-27 thread for the others (1/4 NPT" pipe fitting can be found here) |
1/8" NPT-27 thread (1/4" NPT pipe fitting can be found here) |
| Customized Process Connections | M12, Hirschmann... | G 1/4, M14x1.5, M12x1.5, 1/4-19PT | G 1/4, M14x1.5, M12x1.5, 1/4-19PT | N.A. |
| Electromagnetism Compatibility | IEC60000-6-2 IEC61000-6-3 IEC61000-4-5 |
EN61326-1:2013 EN61326-2-2:2013 The EMC Directive2014/30/EU |
EN61326-1:2013 EN61326-2-2:2013 The EMC Directive2014/30/EU |
EN61326-1:2013 EN61326-2-2:2013 The EMC Directive2014/30/EU |
| Supply Voltage | 5V for 2000433-H 12-30V for 2000433-HX |
5V for 2000361-H 8-30V for 2000361-HX |
5V for 2000361-H-E 8-30V for 2000361-HX-E |
5V |
| Max Power Consumption | 0.5W for 2000433-H |
0.05W for 2000361-H |
0.05W for 2000361-H-E |
0.05W |
| Sealing Material | NBR rubber |
NBR rubber |
NBR rubber |
NBR rubber |
| Included Wiring Harness | 3 ft | 3 ft (10ft harness can be found here) | 10 ft | 3 ft (10ft harness can be found here) |
| Free USPS Shipping | No | No | Included | No |
| Warranty | 90 days | 90 days | 1 year | 30 days |
| Standard Ranges | 0 to 100, 1500, 5000, 10000, 14500 psi |
-14.5 to 15, 30 psi 0 to -14.5, 15, 30, 50, 60, 100, 150, 200, 300, 500, 1000,
1500, 2000, 3000, 5000, 10000 psi |
-14.5 to 15, 30 psi 0 to -14.5, 15, 30, 50, 60, 100, 150, 200, 300, 500, 1000,
1500, 2000, 3000, 5000, 10000 psi |
0 to 30, 50, 60, 100, 150, 200, 500 psi |
| Customized Ranges | up to 14500 psi | -14.5 psi to 10000 psi | -14.5 psi to 10000 psi | N.A. |
| Warning | High impact resistance, such as water hammer effects | Avoid sudden and strong pressure changes, as this can cause a water hammer effect, leading to permanent damage to the pressure sensor. Adjust pressure gradually to ensure sensor longevity | ||
| Cost | $
199
for up to 10000 psi $ 249 for 14500 psi $ 249 for 2000433-CH (Typical lead time, 8 weeks) |
$
68
for 2000361-H $ 79 for 2000361-HX $ 99 for 2000361-CH (Typical lead time, 8 weeks) |
$ 99 for 2000361-H-E $ 99 for 2000361-HX-E |
$39.99 for 2000361 |
