Model DI-4208-M
Rugged, 8 Channels, expandable to 128 channels USB & Ethernet ±100V DAQ and Stand-alone Data Logger, 32GB Flash Drive, 160kHz, Anti-aliasing Filter, 7 D I/O, PoE, WinDaq Software
Select Interface:
Select Options:
Includes WinDaq/Unlock with ChannelStretch™.
Stock
- Includes a DI-4208-M instrument, a 6-foot USB cable, a 5-foot Ethernet cable, a power supply and adapter, a screwdriver for signal connections, and a USB thumb drive with WinDaq/Lite software (also downloadable at run.dataq.com), and a NIST-traceable calibration certificate (.pdf)
- Provided with WinDaq/Lite Software which records up to four channels at any sampling rate. Purchase WinDaq/Unlock to record all channels, or to synchronize multiple units (units cannot be synchronized in stand-alone mode). See Accessories. WinDaq/Unlock code required per device for data synchronization in WinDaq.
- Need trigger modes or to stream to Excel direclty? please consider ExcelLink

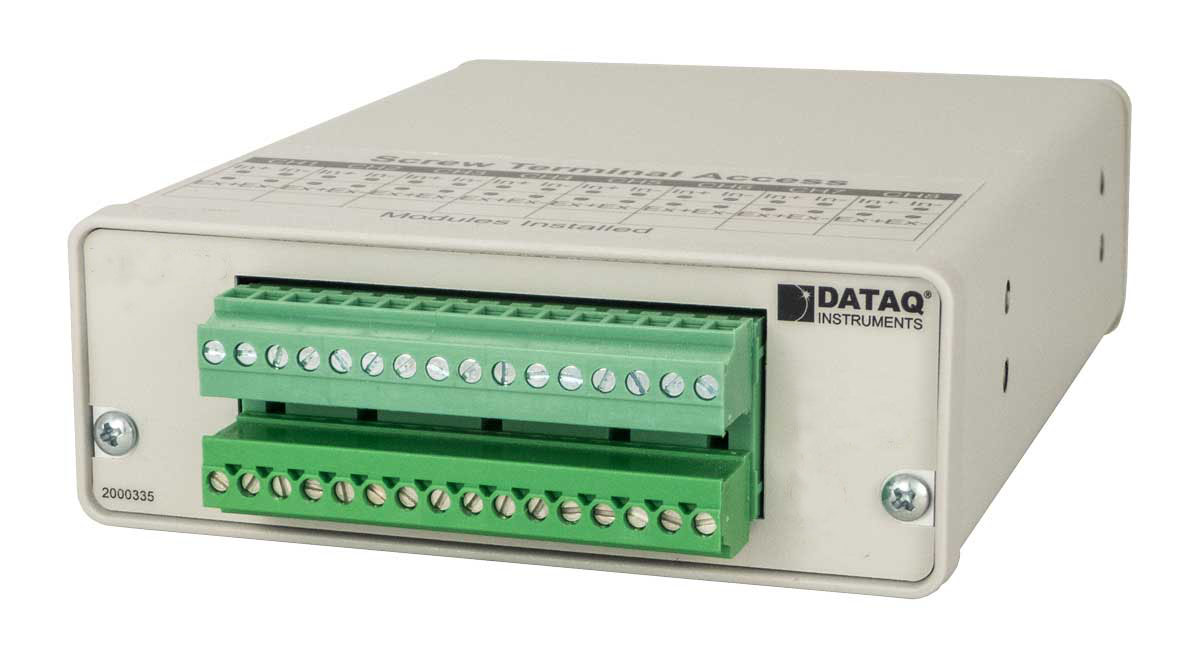

- Stackable rugged enclosure with ground lug for harsh environment
- Easy signal swapping connector
- Isolated 15V (1W) output
- ChannelStretch™ multi-unit synchronization included
- Stand-alone capability to USB thumb drive
- Up to 160,000 Hz Sample Throughput Rate using WinDaq Acquisition software
- Up to 160,000 Hz Sample Throughput Rate in stand-alone mode using high speed microSD card
- 12 to 16-bit analog-to-digital resolution (Calculate Resolution)
- Programmable ranges: ±2, ±5, ±10, ±20, ±50, ±100 V full scale
- Power over Ethernet (PoE) option available
- Eight armored analog differential inputs*
- Up to 120 V rms without damage
- 50 dB common mode rejection
- Adaptable low-pass filter per channel
- Corner frequency set as a function of sampling rate
- Seven digital ports*
- Programmable per port as input or switch
- Support for rate measurements to 50 kHz
- Support for 16-bit counter
- Software support includes ready-to-run WinDaq/Lite software and documented protocol for software development in all operating systems
- Use HMP60 Probe for Temperature and Humidity Measurements
- Marking: CE
- Find out how long your data logger can record to removable flash memory with our Record Time Calculator
*WinDaq/Unlock required per device to use ChannelStretch™ and to record more than four total channels when using WinDaq software. See Accessories.
Description
DI-4208-M is the rugged verion of DI-4208-E, with easy signal swap phoenix connector, metal enclosure, and ground lug to provide better EMC immunity in harsh environments.
DI-4208-M is Rugged High Speed USB and Ethernet Data Acquisition System with Windaq software. Features 8 differential analog input channels (Unlock Code required to record more than 4 total channels to WinDaq), 12 to 16-bit measurement resolution, full scale ranges of ±2, ±5, ±10, ±20, ±50, and ±100 V, and stand-alone data recording to removable USB thumb drive.
Model DI-4208-M delivers premium analog performance at a surprisingly affordable price. Eight analog input channels provide differential measurement flexibility and programmable ranges per channel of ±2, ±5, ±10, ±20, ±50, and ±100 V full scale. The differential input configuration provides noise rejection, easily adapts to single-ended signal sources, and is protected to 120 V rms so that inevitable measurement mishaps will not harm the instrument. The front end feeds a variable resolution analog-to-digital converter that ranges from 12 to 16 bits as a function of sampling rate. Lower sampling rates deliver higher resolution readings. The maximum analog sampling throughput rate of the DI-4208 analog subsystem is 160 kHz, providing 12 bits of resolution. Below 10 kHz the instrument delivers 16-bit resolution with a single enabled analog channel. Below 2 kHz per analog channel the DI-4208 provides 16-resolution with five or more enabled analog channels. See inside for details. Rounding off the analog subsystem are low-pass filters per channel with automatic corner frequency selection as a function of sampling rate. All these features combine to provide pure data acquisition power at an unmatched price point.
The DI-4208-M provides 7 digital ports, each configurable as an input or a switch. Input protection is provided to 25 V. When activated as inputs two ports allow dual functionality as discrete inputs, or can be programmed as a counter or rate input respectively. The rate input features a 50 kHz maximum measurement, allocated over twelve programmable measurement ranges (10 Hz to 50 kHz full scale.) The counter input provides 16-bit resolution and a terminal count value of 65,535. The discrete, counter, and rate inputs are members of the same internal scan list used by the analog input channels. This means that all enabled elements are acquired synchronously, which allows meaningful comparisons between analog and digital channels. For example, the rate input measuring engine speed allows rpm data to be acquired in lock-step with analog data. Configured as a switch a digital port can be used to control external loads up to 25 V @ 100 mA, and the switch can be controlled asynchronously during scanning.
A USB drive is used to record data in stand-alone mode. The DI-4208-M can record continuously using a circular buffer with pre-defined trigger conditions or a record-until-full approach supporting remote start/stop. A push button allows manual start/stop control over the recording process. With a flash memory card incorporating SLC technology, throughput rates up to 160 kHz can be achieved. That rate drops to 50 kHz when using pSLC card, and 20 kHz using a flash memory card incorporating MLC. The included WinDaq data acquisition software makes configuring the DI-4208 for stand-alone operation quick and intuitive. Use WinDaq to set up channels and create a reference file. That reference file can then be copied to the USB drive and used for quick setup.
Accessories
SA-Enabled-4208 for Device You Already Own
DI-4208 Unlock Code for Stand-alone Operation
Description
Unlocks all channels and ChannelStretch™ on WinDaq and stand-alone data logger operation (allows all channels to be recorded to removable USB flash memory). Unlock Code ONLY. No Power Supply Included. No CD will be shipped. Please Note: You MUST provide the serial number of your device under "Order Notes" during checkout to receive the unlock code. Please allow one (1) business day for processing.
Description
Unlocks WinDaq ExcelLink to capture and streaming WinDaq data to any version of Microsoft Excel spreadsheet directly. No programming is needed. Compatible with ChannelStrech operation. Unlock Code required for each device.Please Note: If you are ordering this software for a device you already own, you MUST provide the serial number of your device under "Order Notes" during checkout to receive the unlock code. Please allow one (1) business day for processing.
Description
2000361-HX 4-20mA Output High precision pressure sensor measures PSI ranges of -14.5 to 10000 PSI dependant on model. 8-30V supply voltagle, compatible with DI-2008, DI-4108M, DI-4208M and DI-808. Made with 316 stainless steel and high temperature auto-graded plastic. 0.5% accuracy. 4-20mA linear current output.
Description
2000361-H High precision pressure sensor measures PSI ranges of -14.5 to 10000 PSI dependant on model. Requires 101087-1 DC/DC Converter to be used with DI-808, DI-2008, DI-4108M and DI-4208M. Made with 316 stainless steel and high temperature auto-graded plastic. 0.5% accuracy. 0.5V – 4.5V linear voltage output.
Description
2000425 Family industrial grade flow sensors, accuracy: 0.5%, 12-24V supply, pulse output
Description
250 Ω ±0.1% Precision, Metal Film, 1/2W, Axial Resistor
Exceptionally low noise; typically 0.10 μV/V
Low voltage coefficient to ±5 ppm/V
Flame retardant coating. RoHS
compliant. Learn More
Description
32GB 3.0 USB flash drive for stand-alone recording up to 10,000 Samples per second throughput.
Description
1 GB Industrial Industry-grade high speed SLC microSD flash memory card. Recommended for recording rates higher than 80K S/s throughput rate and harsh environment. microSD Card Reader (Part#2000352) is needed
Description
32 GB Industry-grade high capacity microSD flash memory card. Recommended for recording rates between 10,000 S/s and 40,000 S/s throughput rate and harsh environment. microSD Card Reader (Part#2000352) is needed
Description
Micro SD Card Reader with USB A interface. Hi-Speed USB 2.0 compatible transfer rates. No additional card adapters required
Description
Charge your phone or operate DI-2160, DI-2108/P, DI-4108 or 4208 for standalone recording for days. 20000mAH capacity
Description
Allows you to power 5V rating sensor with a battery. Input voltage: DC8-35V, (12V/24V changes to 5V); Output parameter: DC5V 3A, 15W MAX
Description
Temperature and humidity probe measures -40 to +60 °C and 0 to 100% RH. Learn more.
Description
AC/DC Current Clamp includes 9V battery and user manual. Download the DataSheet (pdf) to learn more or go to the product page.
Description
Ferrite choke reduces interference for USB-based data acquisition products.
Description
Replacement 16-port removable screwless push-in spring connection terminal block
Description
Replacement 16-port removable screw terminal block for TOP of screw terminal block receptacle in DI-78B, DI-710, DI-718B, DI-4718B, DI-718Bx, DI-785, DI-788, and DI-808 products.
Description
Replacement 16-port removable screw terminal block for BOTTOM of screw terminal block receptacle in DI-78B, DI-710, DI-718B, DI-4718B, DI-718Bx, DI-785, DI-788, and DI-808 products.
Description
Optional USB Cable for use with ChannelStretch™. Dual ferrite cores provide maximum protection against ground bounce that could lockup your PC's USB port during data acquisition. 20.4-inch (520 mm) overall cable length. Recommended whenever products are deployed in our ChannelStretch™ configuration.
Description
Powered 7 port USB hub to synchronize multiple USB devices. Please note: Not all DATAQ Instruments devices support synchronization - check your product datasheet or product page for detailed information. Note: Provided with a US ac adaptor only, and is not suitable for use in countries that require an ac mains connector other than the US type.
Description
8-Port Gigabit PoE Switch. 8 dedicated 10/100/1000 Mbps copper ports with PoE to connect with your Dataq Power over Ethernet (PoE) devices. Delivers up to 15.4W power per port and up to 53W of total PoE budget.
Description
16-ft USB Extension Cable. USB 2.0 Type A. Daisy chain up to 5 cables for extended length.
Description
Optional AC power supply (USB to AC) for stand-alone applications and charging EL-WiFi Series products. Includes US adapter.
Description
Spare US Adapter for AC power supply 101017-2 and 101085.
Description
Spare European Adapter for AC power supply 101017-2 and 101085.
Description
Spare UK Adapter for AC power supply 101017-2 and 101085.
Description
Spare Australian Adapter for AC power supply 101017-2 and 101085.
Description
Allows you to power data logger with a battery. Input voltage: DC8-35V, (12V/24V changes to 5V); Output parameter: DC5V 3A, 15W MAX
Description
YF-S201 Flow Sensor Measures 1-30L/min. Light weight, small size, durable, and easy to install. Inlaid with stainless steel impeller shaft. Lowest working voltage: DC4.5 5V-24V; Max current: 15 mA (DC 5V); Max operation temp: 120°C. Learn more.
Description
Pair of stacking brackets (with mounting screws) for DI-4718 Series, DI-4108 Series, DI-4208 Series, DI-808 Series, DI-710 Series, DI-718B Series, and DI-100TC Series instruments
Description
Pair of angle mounting brackets (with mounting screws) for DI-4718 Series, DI-4108 Series, DI-4208 Series, DI-808 Series, DI-710 Series, DI-718B Series, and DI-100TC Series instruments
Description
Re-calibration Service, this calibration certificate is included with new instruments. NIST-traceable certificate for model DI-4208 high speed data acquisition product. Includes before and after data. Shipping charges do apply when ordering online. Learn more about Calibrating your device.
Software
WinDaq
Data Acquisition Recording and Playback Software
Included FREE with your DI-4208 purchase. Record as many as 4 channels at 160,000 samples per second throughput. Installs drivers and WinDaq recording and playback software. Includes optional Add-on software with a valid installation key. Record all 8 channels and enable ChannelStretch with an Unlock Code (see Accessories).
WinDaq ExcelLink
WinDaq-to-Excel Real Time Link
High speed (up to 160K s/s) with powerful trigger methods to capture or stream data to Excel in real time, compatible with ChannelStretch, supports both 32- and 64-bit Excel. No programming is needed.
MATLAB Example Program
Program in Protocol Level
Learn how to program with MATLAB® in protocol level. Does not require MathWorks' Data Acquisition Toolbox.
WinDaq Add-ons and Utilities
Library
Library of add-on packages for WinDaq Software, such as live XY plot, FFT, Spectrogram, Meter, Gauge, Alarm, etc.
WinDaq XY Viewers
Live XY charting for WinDaq and WWB
Originally designed for GE Mining Division, these two XY plotting utilities are great tools for trouble shooting their mining equipments.
Python Example Programs
Available on GitHub
FREE Python example programs using the fully documented device protocol. All sample programs are well-commented to help you get up and running quickly.
LabView Example Programs
Available on GitHub
FREE LabView example programs using the Dataq's ActiveX Controls. All sample programs are well-commented to help you get up and running quickly.
Specifications
Analog Inputs | |
Number of Channels: | 8 (Unlock code required to record more than 4 channels with WinDaq - see Accessories) |
Configuration: | Differential |
Full Scale Range: | ±2, 5, 10, 20, 50 100 V |
Input impedance: | 795 kΩ |
Absolute accuracy: | 0.25% of full scale range @ 25°C, excluding common mode error |
Absolute maximum input without damage: | 120 V rms(normal mode + common mode) |
Common mode range: | ±40 V dc or peak ac |
Common mode rejection ratio: | 50 dB (dc - 60 Hz) |
Channel-to-channel crosstalk rejection: | -80 dB |
Digital Ports | |
Number of ports: | 7 |
Type: | MOSFET switch |
Threshold levels: | TTL-compatible |
Absolute maximum applied voltage (V): | 25 V dc |
Programmed as a Switch | |
Maximum drain voltage: | 25 V |
Maximum sink current: | 100 mA |
Count/Rate/Inputs | |
Internal pull-up value: | 4.7 kΩ |
Input high voltage threshold: | 2.4 V |
Input low voltage threshold: | 0.8 V |
Terminal count: | 65,535 |
Maximum rate frequency: | 50 KHz with one enabled channel 20 KHz with 2-4 enabled channels 10 KHz with 5-7 enabled channels |
Minimum rate frequency: | 0.5 Hz |
Maximum count frequency: | 50 kHz |
Reserved Digital Inputs | |
Port 1: | WinDaq remote events |
Port 2: | WinDaq remote start/stop |
Port 3: | Rate input |
Port 4: | Count input |
Power | |
Power Consumption: | <1.0 Watt, via USB interface |
ADC Characteristics | |
Resolution: | 12 to 16-bit (Calculate) |
Above zero ADC counts: | 2,047 to 32,767 |
Below zero ADC counts: | 2,048 to 32,768 |
Maximum sample throughput rate: | 160,000 S/s |
Minimum sample throughput: | 20 Hz (2.2 samples per hour with WinDaq) |
Sample rate timing accuracy: | 50 ppm |
ChannelStretch™ Operation | |
Maximum number of units: | 16 |
Maximum channel count: | 128 analog, 112 digital |
Maximum supported throughput: | ≥480 kHz |
Synchronization conditions: | Syncs with any combination of DI-4108, -4208, -4718B USB or Ethernet instruments (all synced units must use the same communications interface) up to a total of 128 analog and 112 digital channels. All synced instruments must operate at the same sample rate per channel, regardless of channel number, type, or range. |
PC prerequisite: | All instruments must be using the same communications interface (all USB or all Ethernet). All instruments must be connected to the same USB controller or subnet. The use of USB hubs or Ethernet "smart" switches are recommended to meet this requirement. |
Removable Memory | |
Type: | MLC, pSLC, or SLC flash memory (with USB SD card reader); USB thumb drive |
File Format | CSV (Excel compatible) or WinDaq (Higher capacity and max speed) |
Required Format: | FAT32 |

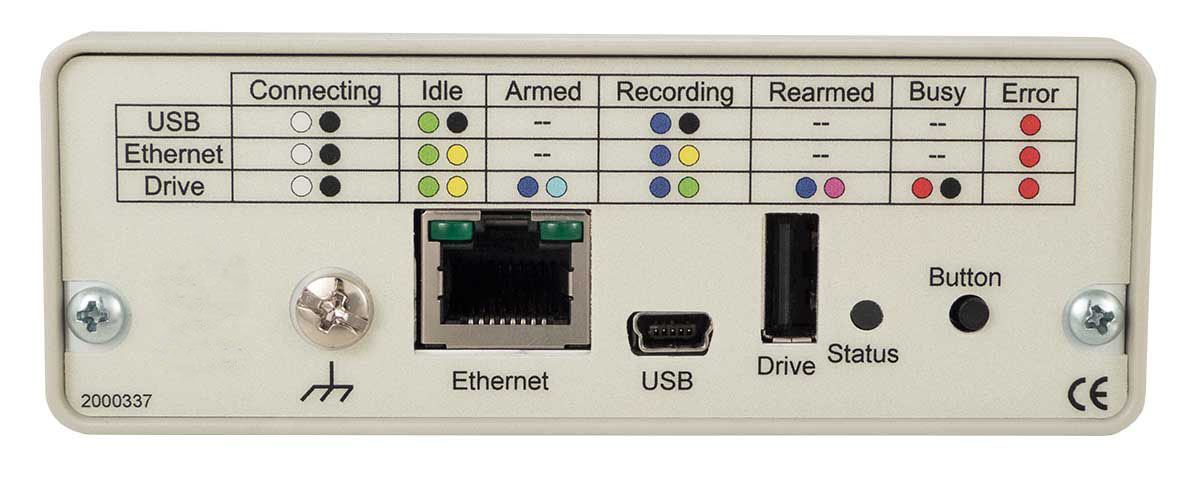

Indicators and Connections | |
Interface: | USB 2.0 (mini-B style connector) |
Indicator light: | Multi-color LED |

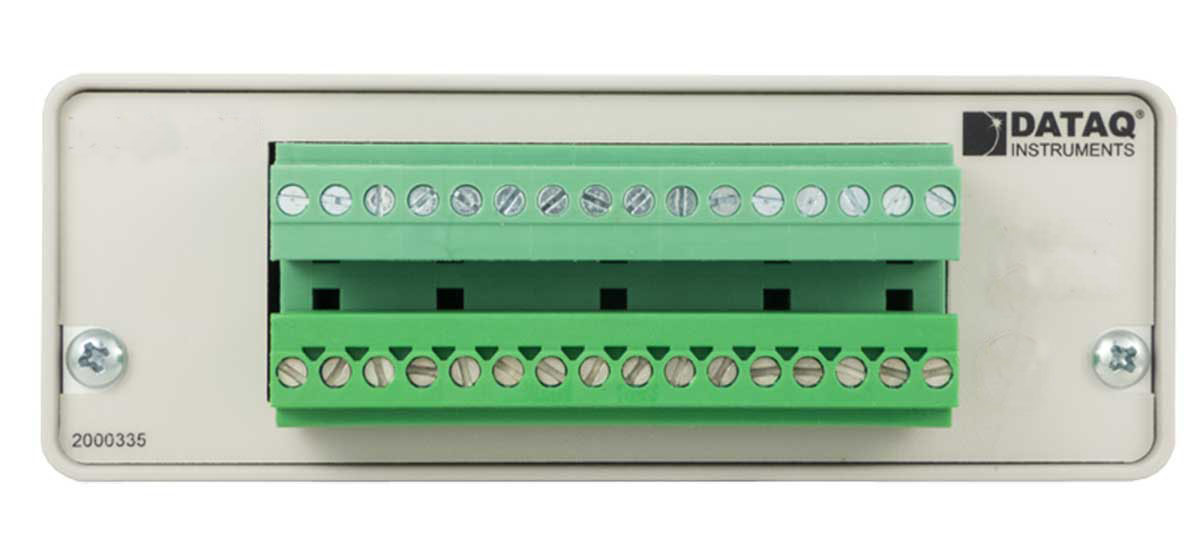

Input Connections: | Two 16-position terminal strips |
USB A Connector (Drive): | USB port for stand-alone data logging |
Environmental | |
Operating Temperature: | 0 to 50 °C |
Operating Humidity: | 0 to 90% RH non-condensing |
Storage Temperature: | -20 to 60 °C |
Storage Humidity: | 0 to 90% non-condensing |
Physical Characteristics | |
Enclosure: | Polycarbonate ABS, 0.080 inch thickness |
Mounting: | Desktop; bulkhead |
Dimensions: | 3.28D × 6.68W × 1.13H in. (83.31D × 169.67W × 28.7H mm.) |
Weight: | 5.7 oz. (162 grams) |
Software Support | |
WinDaq software: | OS support |
Programming: | Instrument protocol, ActiveX Control |
Articles
How to Acquire Flow Rate and Flow Volume using a DATAQ Data Logger
Making Pressure Measurements with a Dataq Data Logger and Pressure Sensor
Intelligent Oversampling Methods Extend Measurement Flexibility
4-20mA Current Loop Data Acquisition
4-20 mA Measurement Resolution
Videos
Pressure Measurements
Learn how to make pressure Measurements with a pressure sensor and Dataq products.
Quick Product Comparison
Model (DI-) |
Analog channels |
Measurement Range |
Expansion with other models (DI-) |
Max Sample Rate (Hz) |
Low-pass Filter |
ADC Resolution |
Digital I/O |
Stand-alone Capability |
Counter Channel |
Rate Channel |
1100 | 4 | ±10 V | - | 40,000 | - | 12 | 2 In | - | - | - |
2108 | 4 or 8 | ±10 V | - | 160,000 | Yes | 12-14 | 7 Bi | Yes | Yes | Yes |
2108-P | 4 or 8 | B† | 2108-P | 160,000 | Yes | 16 | 7 Bi | Yes | Yes | Yes |
4108 | 4 or 8 | C† | 4108, 4208, 4718B, 4730 | 160,000 | Yes | 12-16 | 7 Bi | Yes | Yes | Yes |
4208 | 4 or 8 | A† | 4208, 4108, 4730, 4718B | 160,000 | Yes | 12-16 | 7 Bi | Yes | Yes | Yes |
*Expand with ChannelStretch™. Compatibility with other units dependent on model.
†Use the following chart to determine Measurement Ranges:
A | B | C |
±2 V ±5 V ±10 V ±20 V ±50 V ±100 V |
±2.5 V ±5 V ±10 V 0-5 V 0-10 V |
±200 mV ±500 mV ±1 V ±2 V ±5 V ±10 V |
