2000435-4X Signal Splitter/Isolator

Description

The DATAQ 2000435-4X provides an isolated splitter for 4–20 mA transmitters. It converts one current input signal into 4 isolated output signals, with galvanic isolation between the input, output, and power supply.

It is compatible with modular instrumentation, DCS, PLCs, and other systems to provide signal isolation, conversion, distribution, and processing for field instruments. This enhances the noise immunity of the automatic control system in industrial production environments, ensuring greater system stability and reliability.

The product features a 1-input / 4-output configuration, with Input/Output magnetic isolation.



Accessories

Specifications

Transmitting Accuracy:	±0.1%F.S (25℃±2℃)
Rise Time:	≤ 0.2 ms
Settling Time:	≤ 2 ms
Influence of Ambient Temperature:	< 30 ppm/℃
Ripple:	<1 mV
Frequency Range:	0~300 Hz
Input Resistance:	≤60 Ω
Power Supply Voltage Range:	18~32V DC (Recommended voltage:24V DC)
Power Consumption:	24V DC
Single Output:	0.4W
Insulation Resistance:	≥ 100 MΩ (Input /Output /Power)
Dielectric Strength:	≥ 2500 V AC (Input /Output /Power, 1mA leakage current, 1 minute test time)
EMC:	CE Compliance, EMC: IEC 61000-4

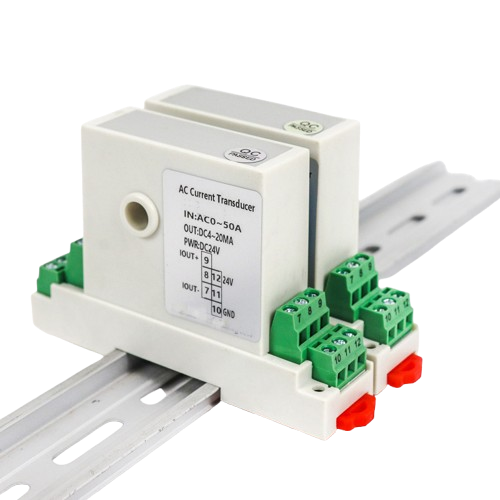

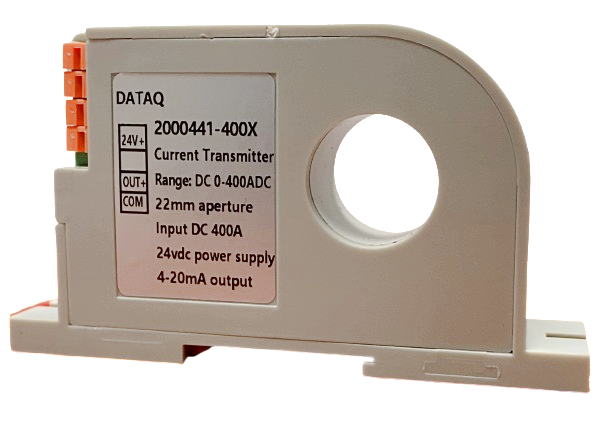

Compatible Products
