16-channel Ethernet Data Acquisition System
- Includes a DI-710-ELD instrument, a 5-foot crossover Ethernet cable, a power supply, an NIST-traceable calibration certificate, and software on CD
- Bundle and Save

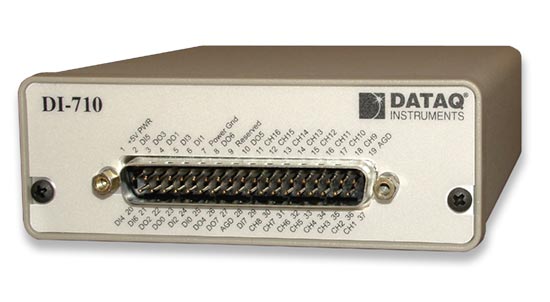

- Same as model DI-710-EL but with 37-pin "D" sub front end connector (view pinout)
- 16 single-ended, 8 differential analog inputs.
- Measurement range of ±10mV to ±10V
- 14-bit analog to digital conversion.
- Includes WinDaq Software.
- Up to 4800 Hz Sample Throughput Rate
- Unlock code required for sample rates over 1,108 Hz only when using WinDaq software
DI-710 General-purpose Ethernet Data Acquisition System with Windaq software. Features 8 differential or 16 single-ended analog input channels, 4,000 Samples per second throughput, 14-bit measurement resolution, and full scale ranges of ±10mV, ±100mV, ±1V, ±10 V full scale.
The DI-710 Series of products is a family of instruments for general purpose and stand-alone data logger data acquisition applications. Options include interface type, input voltage range, and PC-connected or standalone data logger operation. Interface options are USB or Ethernet. Gain ranges have selectable factors per channel of 1, 2, 4, and 8, or 1, 10, 100, and 1000. Instruments with the stand-alone data logger option feature a built-in multimedia socket that accepts standard Secure Digital (SD) memories to which acquired data may be stored without a connected PC. SD memories are the same commonly available mass storage devices used with digital cameras and MP3 players. Memories ranging in size from 16 MB to 2 GB are supported. Instruments without this option must remain tethered to a PC’s USB or Ethernet port during data acquisition and use the PC’s own program and memory to store acquired data.
All DI-710 Series products feature 14-bit measurement resolution, sixteen analog input channels that may be configured for single ended or differential operation per channel, and an 8-bit digital bi-directional port. PC-connected instruments stream data to the PC from as low as 0.048 Hz up to as high as 4,800 Hz throughput rate. Stand-alone data loggers store to their SD memory from as low as 0.0017 Hz up to as high as 14,400 samples per second. All DI-710 instruments are supplied with two removable, 16-position screw terminal access connectors.
DI-710 High Speed Unlock Code
Unlocks WinDaq to allow recording speeds up to 4.8 kHz throughput. Unlock Code ONLY. No CD will be shipped. Please Note: If you are ordering this software for a device you already own, you MUST provide the serial number of your device under "Order Notes" during checkout to receive the unlock code. Please allow one (1) business day for processing.
Power Connector for DI-1000TC, DI-710, and DI-718B products.
Spare power supply for DI-710, DI-718B, DI-4718B, and DI-1000TC products.
Australian Power Adapter
Spare Australian Adapter for AC power supply 101017-2 and 101085.
UK Power Adapter
Spare UK Adapter for AC power supply 101017-2 and 101085.
EU Power Adapter
Spare European Adapter for AC power supply 101017-2 and 101085.
US Power Adapter
Spare US Adapter for AC power supply 101017-2 and 101085.
AC/DC Current Probe
Pair of angle mounting brackets (with mounting screws) for DI-710 Series, DI-718B Series, DI-100TC Series, and DI-808 Series instruments.
Re-calibration Service, this calibration certificate is included with new instruments. NIST-traceable certificate for all DI-710, DI-718B, and DI-718Bx data acquisition and data logger products. Includes both before and after data. Shipping charges do apply when ordering online. Learn more about Calibrating your device.
Data Acquisition Recording and Playback Software
Included FREE with your DI-710 purchase. Installs drivers and WinDaq recording and playback software. Includes optional Add-on software with a valid installation key. 1108Hz maximum sample rate. For higher rates purchase the unlock code under the Accessories tab.
FREE ActiveX programming solutions for Dataq Instruments products. Free sample programs available. Compatible with LabView.
WinDaq-to-Excel Real Time Link
Real-time data logging directly to Microsoft Excel (supports MS Office 2003 or higher). No programming required. Free Trial Version. Purchase full version on WinDaq/XL product page.
Advanced analysis software add-on to WinDaq Waveform Browser software. Allows calculated channels, derivative, integration, moving average, automatic file management, automatic scaling, and more.
|Number of Channels:||16SE/8DI (software selectable per channel)|
|Measurement Range Full Scale:||
|Input Impedance, single-ended:||1MΩ|
|Input impedance, differential:||1MΩ each input to common|
|Input bias current:||10µA for a 10V input, single channel|
|Input offset voltage:||Auto-zero|
|Input offset current:||2nA (single channel)|
|Max. normal mode voltage:||30V DC or peak AC|
|Max. common mode voltage:||30V DC or peak AC|
|Common mode rejection:||80db, gain=1, 1KΩ unbalance|
|Channel-to-channel crosstalk rejection:||-75db @ 100Ω unbalance|
|Gain temperature coefficient:||50 ppm/°C|
|Offset temperature coefficient:||0.25µV/°C|
|Digital filtering:||Standard: Conditional over-sampling
|Max. throughput sample rate:||Standard: 4,800 Hz (requires Unlock Code)
Stand-alone: 14,400 Hz
When acquiring more than one channel at a gain of 100 max throughput is 7200 Hz
When acquiring more than one channel at a gain of 1000 max throughput is 900 Hz
Dependent on SD card used. Low speed SD cards can sample up to 2,000 Hz
High speed cards can sample up to 14,400 Hz. Some high speed cards cannot sample as high at 14,400 Hz but their capability can only be determined by trial and error (Model 101014-2G has been tested and approved).
|Min. throughput sample rate:||Standard: 0.0034 Hz
Stand-alone: 0.0017 Hz
|Max. scan list size:||17 entries|
|Sample buffer size:||2kb|
|Controls (Stand-alone models)|
|Single push-button:||Manual control Record and Standby|
|Calibration cycle:||One year|
|Bits:||8 bidirectional bits|
|Configuration:||Each bit is programmable as Input or Output|
|Output voltage levels:||Min. "1" 3V @ 2.5mA sourcing
Max. "0" 0.4V @ 2.5mA sinking
|Output current:||Max. source, -2.5 mA
Max. sink, 2.5mA
|Input voltage levels:||Min. required "1" 2V
Max allowed "0" 0.8V
|Removable Memory (Stand-alone models)|
|Type:||Standard SD (not SDHD or SDxC). Minimum speed of 13x. For sample rates above 2kHz SD speed should be 133x or higher.|
|Capacity:||16 MB to 2 GB|
|Real Time Clock (Stand-alone models)|
|Type:||Date, hour, minute, second|
|Stand-alone models:||Three-color LED indicating Record, Standby, and Error conditions|
|Standard models:||Power LED|
|Transfer Rate to PC|
|Real Time:||up to 4,800 samples per second|
|From Memory Card:||up to 2,400 samples per second (Ethernet only)|
|Panel indicators:||Mode LED|
|Panel-accessible Power:||5 VDC @ 10 mA max|
|Panel Controls:||Control push button (Stand-alone models)|
|Panel Slots:||Accepts SD-type flash memory|
|Input connectors:||Two, removable sixteen position terminal blocks|
|Operating Environment:||0°C to 70°C|
|Enclosure:||Aluminum base with steel wrap-around. Aluminum end-panels with plastic bezels.|
|Dimensions:||5.4375D × 4.125W × 1.5H inches (13.81D × 10.48W × 3.81H cm.)|
|Power Requirements:||USB (stand-alone): 9 to 36 VDC, 2 watts max
USB (non stand-alone): 5V @ < 2 watts max (supplied by USB port)
Ethernet: 9 to 36 VDC, 2.5 watts max
