Model EL-Mote-TC

Wireless Thermocouple Data Logger Measures Temperatures from 0 to 200°C (32 to 392°F) with the provided thermocouple and up to -200 to +1,300°C (-328 to +2,372°F) overall

$218.49
In
Stock
  • Includes an EL-MOTE-TC WiFi data logger, a wall mounting bracket, 4 × 1.5V AA batteries, a type-K thermocouple temperature probe (measuring 0-200°C and downloadable software (CALIBRATION CERTIFICATE sold separately under ACCESSORIES tab and must be ordered at time of purchase)
  • Measures temperature between 0 to +200°C / +32 to +392°F using the standard K-type probe provided. Other thermocouple probes can also be used
  • Records and uploads temperature data to the EasyLog Cloud
  • Access live temperature data via any Internet Browser or the EasyLog Cloud App
  • Set up alarm options for temperature zone breaches – email alerts, beeper alarms or LED flash alerts
  • Suitable for indoor and outdoor use
  • Battery life of up to 2 years
  • Quantity Discount
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page

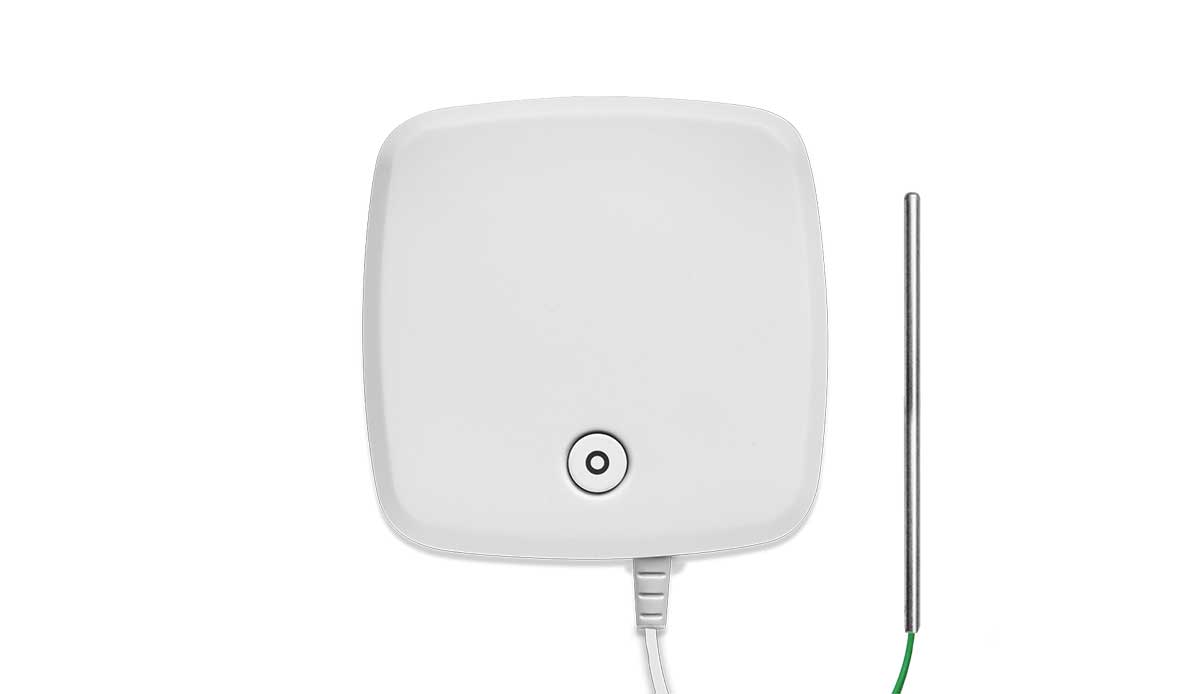

EL-Mote-TC Data Logger
This data logger has 0.1 degree of resolution.This data logger has a single channel.This data logger measures temperature.This data logger measures thermocouple temperatures type J, K, and T.This data logger can record one sample every 10 seconds.
This data logger works with a wifi connection.This data logger records data to the cloud.Get same day shipping when you order this data logger before 3PM ETThis data acquisition system has a 30-day Money back guaranteeUse coupon code EL10USB for 10% off your Lascar data logger purchase.

Description

The EL-MOTE-TC has been designed to monitor temperature in a large range of applications, using a standard K-type probe on a 1.5m cable. Ideal for monitoring locations perhaps difficult or inhospitable to the data logger itself, the EL-MOTE-TC is ideal for monitoring environments where a wide temperature range is required. Other thermocouple probes can be used with the EL-MOTETC for applications requiring temperature readings outside of those covered by the supplied probe (see specification table for details).

Products in the EL-MOTE range are simple to set-up and easy to use. Download the EasyLog Cloud App and set-up a device in minutes over your WiFi network. After set-up, the device can be placed anywhere within range of the WiFi network, continually monitoring and recording your data to the EasyLog Cloud. Access your data on any Internet Browser or the EasyLog Cloud App, enabling you to monitor the temperature of your chosen location from anywhere at any time.

EL-MOTE devices can be programmed with high and low temperature alarm zones. If a temperature zone is breached, an alarm will be activated. Alarm options include: email alerts (which can be sent to one or multiple email addresses), beeper sound alarms, and LED flash alerts.

EL-MOTE devices can be powered using the supplied batteries or a mains adapter (sold separately), and are provided with a wall mountable bracket for installation.

With EasyLog’s brand new range of smart probe enabled data loggers, such as the EL-MOTE-TC, there is no need to take your product out of action and send it away for re-calibration for what can often be weeks. When it comes time to re-calibrate your data logger, simply order a new pre-calibrated smart probe, which you can immediately swap in for your old one.

Accessories

PSU EL-IOT

AC Power Adapter

$19.99
AC power supply for EL-MOTE Data Loggers

Description

AC Power Adapter for EL- Data Loggers. Includes 4 interchangeable plug styles (UK, US, EU and AU/NZ). 1 meter cable length.

EL-MOTE-WALL-BRACKET

Wall Bracket

$11.99
Wall Bracket for EL-MOTE Data loggers

Description

White plastic wall bracket attaches to the back of your EL-MOTE device. Attach your EL-MOTE device to the wall using the affixed sticky pad or by screwing into the wall via the screw holes in the wall bracket (screws not provided).

EL-P-TC-K

Thermocouple Probe

$23.99
K-type Thermocouple Probe

Description

K-type thermocouple probe. 1.5 meters (4.9 feet). View Dimensions.

CAL EL-USB-TEMP-1

Calibration Certificate (1st Cal Value)

$40.00

Select Temperature Point:

Temperature Calibration Certificate

Description

Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates. NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase this first point option first for each device, and then additional points per device as required. Standard points are $40. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.
Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 3-4 weeks.

CAL EL-USB-TEMP-2

Calibration Certificate (2nd Cal Value)

$25.00

Select Temperature Point:

Temperature Calibration Certificate

Description

Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates. NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase the first point option first (CAL EL-USB-TEMP-1) for each device, and then additional points per device as required. Standard points are $25. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.
Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 3-4 weeks.

Software

EasyLog Cloud

Configuration Software

Cloud-based device management software and iOS and Android App for Lascar EL-Mote, EL-Wifi, El-IoT, and EL-WEM Data Loggers.

Lascar EasyLog Software

Specifications

Logger
Number of Channels: One
Battery Life: 2 years
Battery life is dependent on: transmission period, WiFi encryption method, WiFi encryption key rotation frequency (determined by the router/access point), signal strength between router/access point and WiFi device, presence, volume and type of WiFi traffic from other devices, sample rate and operating temperature. Logging period and transmission period can be configured in Settings via the EasyLog Cloud App
Battery Type: 4 × 1.5V AA cells
Operating Temperature (Mains Adapter Powered): -20 to +60°C (-4 to +140°F)
Operating Temperature (Powered by Batteries Supplied): -18 to +55°C (-0.4 to +131°F)
Resolution: 0.1°
Accuracy (excl. supplied probe): ±1°C (0 to 200°C)
±2°F (32 to 392°F)
Logging Rate: 1 sample every 10 seconds
1 sample every minute
1 sample every 5 minutes
1 sample every 30 minutes
1 sample every hour
1 sample every 6 hours
1 sample every 12 hours
Transmission Period (User Configurable): 1 minute
2 minutes
5 minutes
10 minutes
15 minutes
30 minutes
1 hour
1.5 hours
2 hours
3 hours
4 hours
5 hours
6 hours
12 hours
24 hours
Dimensions: 93 × 93 × 32 mm (3.7 × 3.7 × 1.3 inches)
IP Rating: 67
K-type Probe included (EL-P-TC-K)
Measurement range: 0 to +200°C (+32 to +392°F)
Accuracy: ±2.5°C (±4.5°F)
Probe Length: 100 mm (3.9 inches)
Cable Length: 1500 mm (59.1 inches)
Other Compatible Probe Specifications
K Type Measurement Range: -200 to +1,300°C (-328 to +2,372°F)
J Type Measurement Range: -200 to +1,190°C (-328 to +2,174°F)
T Type Measurement Range: -200 to +390°C (-328 to +734°F)
