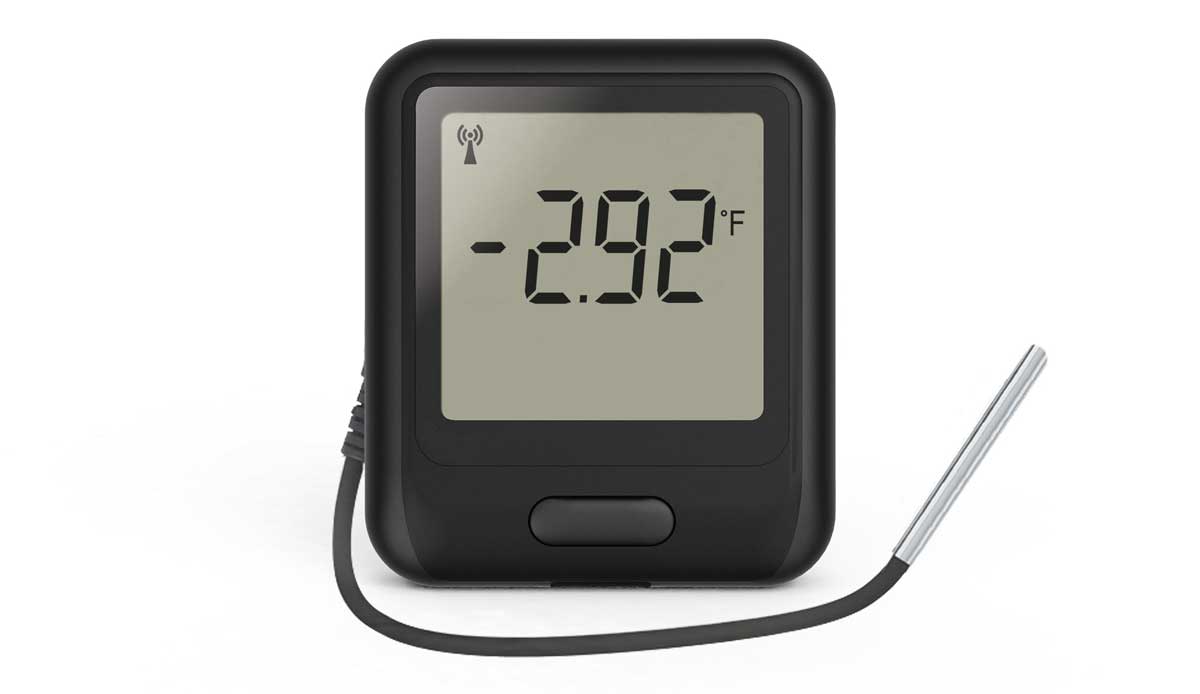

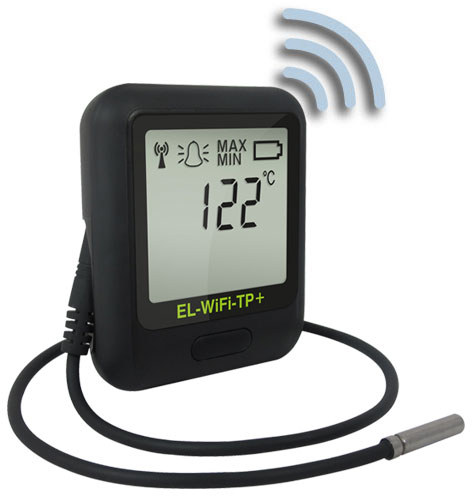

Model EL-WiFi-TP+ - (21CFR option available)
Wireless High Accuracy Data Logger Measures Temperatures from -40 to +125°C (-40 to +257°F) with Included Probe
Select Data Security:
Stock
- Includes an EL-WiFi-TP+ data logger, a plastic mounting bracket, a 3-meter USB cable, a thermistor probe (50cm), a probe bracket, a rechargeable battery (pre-installed), and downloadable software (CALIBRATION CERTIFICATE sold separately under ACCESSORIES tab and must be ordered at time of purchase)
- Temperature resolution: ±0.01°C
- Temperature accuracy (-10 to +70°C): ±0.1°C
- -40 to +125°C (-40 to +257°F) temperature measurements
- Thermistor probe (75 mm on 3m cable) IP rating of 67 resists dust and immersion
- Main unit IP rating of 43
- Built-in display shows current, min/max readings, alarm states all the time without the need to push button to show
- Wireless communication to any PC using WiFi
- 802.11b-compliant for universal compatibility
- Built-in, rechargeable battery for independent deployment, with typical battey life of 6 months
- Seamlessly uploads memory to host PC at programmable intervals
- Huge buffer memory of 1,000,000 readings tolerates disconnects
- Programmable high/low alarm limits
- Built-in USB interface for battery charging and initial configuration
- Free configuration, review, and Excel-export software
- Supplied with mounting bracket, USB cable, temperature probe, and probe bracket.
- Cloud-based Device Management allows you to view recorded data and configure your devices over the internet
- 21 CFR compliant Data Audit Trail available for Cloud-based data (Learn More)
- Quantity Discount
Description
Accessories

Description
5 meter thermistor probe extender. 3.5 mm jack extender.

Description
10 meter thermistor probe extender. 3.5 mm jack extender.

Description
High accuracy temperature probe, designed to mimic a product's temperature response. -40 to 125°C (-40 to 257°F) measurement range; Accuracy of ±0.1ºC (-10 to 70°C), ±0.3ºC (-40 to 125°C); 40 minute T90 response (Based on response to a step temperature change of -10 to 21°C).

Description
Spare high accuracy thermistor probe for EL..TP+ products. -40 to 125°C (-40 to 257°F) measurement range; Accuracy of ±0.1°C (-10 to 70°C), ±0.3°C (-40 to 125°C); 75mm stainless steel capped probe on 3m cable.

Description
Optional AC power supply (USB to AC) for stand-alone applications and charging EL-WiFi Series products. Includes US adapter.

Description
Spare US Adapter for AC power supply 101017-2 and 101085.

Description
Spare European Adapter for AC power supply 101017-2 and 101085.

Description
Spare UK Adapter for AC power supply 101017-2 and 101085.

Description
Spare Australian Adapter for AC power supply 101017-2 and 101085.
CAL EL-USB-TEMP-1
Calibration Certificate (1st Cal Value)

Description
Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates. NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase this first point option first for each device, and then additional points per device as required. Standard points are $40. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.
Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 3-4 weeks.
CAL EL-USB-TEMP-2
Calibration Certificate (2nd Cal Value)

Description
Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates. NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase the first point option first (CAL EL-USB-TEMP-1) for each device, and then additional points per device as required. Standard points are $25. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.
Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 3-4 weeks.
Software
EL-WiFi-WIN
Configuration Software
Configuration software for EL-WiFi Data Loggers. Visit the Support Download page at Lascar Electronics for software (takes you another site).

EasyLog Cloud
Files Thru the Air
Cloud-based EL-WiFi, EL-MOTE, EL-IOT and EL-WEM device configuration and management software.

EasyLog Cloud
Configuration Software
Cloud-based device management software and iOS and Android App for Lascar EL-Mote, EL-Wifi, El-IoT, and EL-WEM Data Loggers.

Specifications
Channels: | One |
Battery Life: | 1 year (Typical between charging cycles, but could be less if frequent transmissions) |
USB Supply Voltage: | 4.5 to 5.5 VDC |
Temperature Measurement Range: | -40 to +125°C (-40 to +257°F) |
Internal Temperature Resolution: | 0.01° |
Probe Temperature Accuracy: | Typical (-10 to +70°C): ±0.1°C Maximum (-40 to +125°C): ±0.3°C |
Probe Clip Operating Temperature: | -40 to +100°C (-40 to +212°F) |
Logging Rate: | 1 sample every 10 seconds 1 sample every minute 1 sample every 5 minutes 1 sample every 30 minutes 1 sample every hour 1 sample every 6 hours 1 sample every 12 hours |
Transmission Period (User Configurable): | 1 minute 2 minutes 5 minutes 10 minutes 15 minutes 30 minutes 1 hour 1.5 hours 2 hours 3 hours 4 hours 5 hours 6 hours 12 hours 24 hours |
Unit Operating Temperature: | -20 to +60°C (-4 to +140°F) |
Supported Security Standards: | WEP 64 bit; WEP 128 bit; WPA-PSK; WPA2-PSK |
Number of Loggers per PC: | 253 Loggers |
Articles
Transmitting Data From Your EL-WIFI Series Data Logger
Configuring the All-new EL-WiFi Data Loggers Using EasyLog WiFi Software
EL Data Logger Series and Calibration Certificates (blog post)
Videos

Configuration Software
Software allows you to configure your instrument as well as download and analyze data.

Files Thru the Air
Configure and manage el-wifi-data loggers over the internet. You can also view and store data in the cloud.
