Model DI-154RS - OBSOLETE (Please consider DI-2108)

Serial port data acquisition starter kit

Out of


  • Obsolete - replaced by the DI-149
  • Low Cost, Compact Data Recorder Kit
  • Record Data With 12-Bits of Measurement Accuracy at Rates Up to 240 Samples/Second
  • Convenient Serial Port Interface
  • Four ±10V Analog Inputs
  • Two Digital Inputs For Remote Start/Stop and Remote Event Marker Control
  • One Digital Output with Square Wave Generator
  • Includes WinDaq recording and playback software, communications cable, screwdriver, and documentation
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page

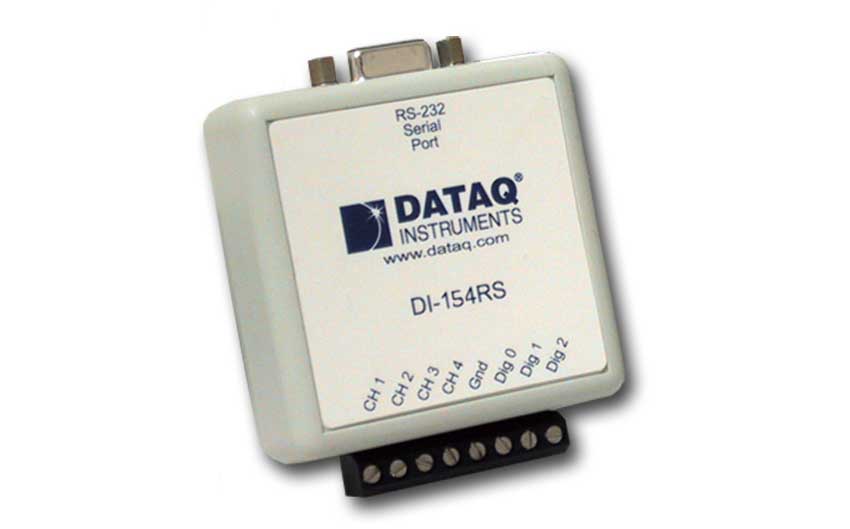

DI-154 Starter Kit DAQ
This data logger is manufactured in the United States of America


The DI-194RS and DI-154RS, DATAQ’s four-channel data acquisition starter kits, are a low-cost way to experience WINDAQ software, now with more features and capabilities than ever before. With these starter kits, you can digitize virtually any transducer’s analog output signal and record it to your PC’s hard disk. At the same time, view the transducers output on your PCs monitor in a triggered sweep (oscilloscope-like) or scrolling (chart recorder-like) display format.

Our starter kits provide a taste of the exceptional power and speed possible with WINDAQ software. They provide 12-bit (DI-154RS) and 10-bit (DI-194RS) measurement accuracy, a ±10V analog measurement range, up to 240 samples/second throughput, and four analog input channels. A CD demonstrates WINDAQ Waveform Browser (WWB), our playback and analysis software, but to get a handson illustration of the data recording and display capabilities of WINDAQ/Lite, you need a DI-154RS or DI-194RS starter kit. When connected to your PC’s serial port, these starter kits allow you to record, display, and analyze data using your own signals. The kits ship with WINDAQ/Lite (Recording Software and Playback and Analysis software). Data acquisition rates up to 240 samples per second are supported for Windows 2000 and XP.
