330-668-1444Model EL-USB-TC
Single Channel Thermocouple Data Logger Supports TC types K, J, and T
Select Data Security:
Stock

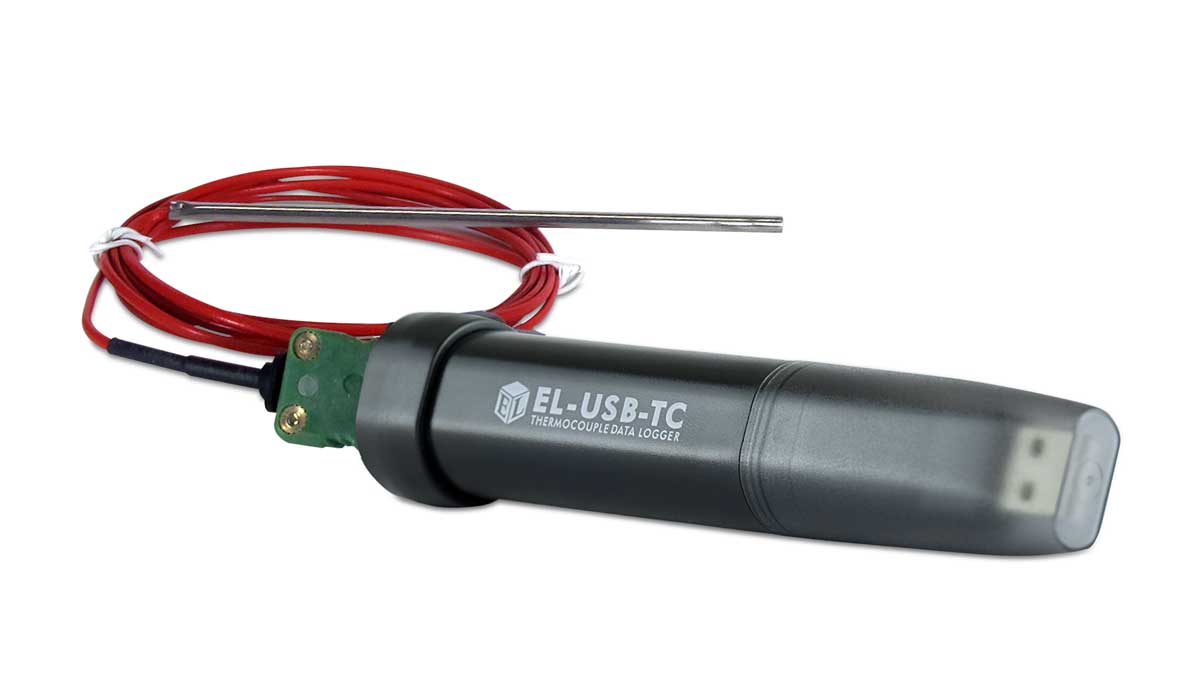

- Includes an EL-USB-TC data logger, a 1.5-meter K-type thermocouple probe, a battery (pre-installed), and downloadable software (CALIBRATION CERTIFICATE sold separately under ACCESSORIES tab and must be ordered at time of purchase)
- -200 to +1300°C Measurement Range (K-type)
- -130 to +900°C Measurement Range (J-type)
- -200 to +350°C Measurement Range (T-type)
- USB Interface for Set-up and Data Download
- 2 User-Programmable Alarm Thresholds
- Bright Red and Green LED Indication
- Replaceable Internal Lithium Battery
- Supplied with basic K-type thermocouple rated from 0 to 400°C (32 to 752°F)
- Quantity Discount
Share
Description

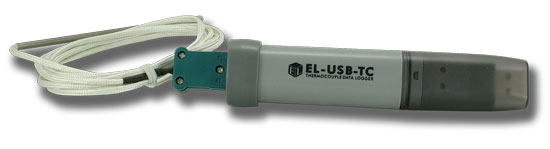

The EL-USB-TC data logger measures and stores up to 32,510 temperature readings from either a J, K or T type thermocouple. A thermocouple is attached via the thermocouple socket at the base of the unit. The user can easily set up the thermocouple type, logging rate, start-time, logging mode, and download the stored data by plugging the data logger into a PC’s USB port and running the purpose-designed software. Data can then be graphed, printed and exported to other applications. The data logger is supplied complete with a long-life lithium battery, which will last for approximately 6 months.
Accessories
Description
Replacement 3.6V, 1200mAh lithium battery. Please Note: Continental U.S. shipping ONLY.
Description
Type T miniature male thermocouple connector.
Description
Type K miniature male thermocouple connector.
Description
Type J miniature male thermocouple connector.
CAL EL-USB-TEMP-1
Calibration Certificate (1st Cal Value)
Description
Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates. NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase this first point option first for each device, and then additional points per device as required. Standard points are $40. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.
Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 3-4 weeks.
CAL EL-USB-TEMP-2
Calibration Certificate (2nd Cal Value)
Description
Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates. NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase the first point option first (CAL EL-USB-TEMP-1) for each device, and then additional points per device as required. Standard points are $25. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.
Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 3-4 weeks.
Software
EasyLog Software
Configuration Software
FREE Configuration and download software for Lascar Data Loggers.
Specifications
| Number of Channels: | One |
| Measurement range (K-type): | -200 to +1300°C (-328 to +2372°F) |
| Measurement range (J-type): | -130 to +900°C (-202 to +1652°F) |
| Measurement range (T-type): | -200 to +350°C (-328 to +350°F) |
| Resolution: | 0.5° |
| Accuracy (logger error): | ±1°C (±2°C) |
| Logging Rate: | 1 sample every second 1 sample every 10 seconds 1 sample every minute 1 sample every 5 minutes 1 sample every 30 minutes 1 sample every hour 1 sample every 6 hours 1 sample every 12 hours |
| Memory Capacity: | 32,000 samples |
| Operating Temperature Range: | -10 to +40°C (+14 to +104°F) |
| Battery Life | 6 months (@ 25°C and 1m logging rate) |
Using thermocouple sensors, the EL-USB-TC can log temperatures as detailed above, but the data logger should not be subjected to temperatures outside the Operating temperature range.
