Model TM-WIFI350

LAN-based Temperature and Humidity Data Logger

Out of
Stock

OBSOLETE, please consider DI-808 with HMP60 sensor combination

  • Includes a TM-WIFI350 data logger base station, an AC adapter (US version - international adapter available via the accessories tab), and a standard 6-foot temperature probe (model AC-TMPRJ126).
  • LAN-based Temperature and Humidity Monitoring - Supports Simultaneous WiFi and Hardwired Interfaces
  • -20°C to +60°C (-4°F to +140°F) Standard Temperature Measurement Range
  • -200°C to +200°C (-328°F to +392°F) Measurement Range with Optional Probe
  • 10% to 90% Measurement Range with RH Sensor
  • Combined Temperature/Humidity or Temperature Only measurements on each of Four Ports
  • Built-in Web Server Accessible and Configurable via Any Standard Web Browser
  • Programmable Alarm Limits Per Channel
  • Real Time email Alerts
  • NTP Server Support for Accurate Time and Date Stamps
  • Built-in Memory for Stand-alone Operation
  • Server-based Real Time Graphical Display
  • Easy Access to XML Feed and Text File for Historical Data
  • Excel-compatible Format for Easy Analysis and Report Generation
  • Administrative Access Protected by User Name Name and Password
  • Optional NIST Calibration Available
  • Pre-drilled Flange Allows Mounting Temperature Alert to Any Surface
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page
Temperature Alert Temperature and Humidity Data Logger


Description

Temperature Alert is an affordable, local area network (LAN)-based device for real time monitoring of temperature, or temperature and humidity.

Temperature Alert provides all the features you’d expect from much more costly solutions. It includes both a WiFi radio and a hard wired Ethernet interface to connect to your LAN. Once connected its built-in web server gives you access to all of the product’s features.

You can set alarm levels on a channel-by-channel basis; program SMTP parameters to report real time alarms, data and status to any email address; retrieve a text file and XML feed for manual or programmatic access to historical data. Preference settings allow you to configure temperature reporting in °F or °C. Set your time zone to report time and date stamps in local time, and specify an NTP time server to keep Temperature Alert precisely synced to Internet-based time servers. Multiple Temperature Alerts may be deployed and individually named for your application (“Freezer Room”, “Archive Warehouse”, etc.), and access to them can be strictly controlled with user names and passwords. Full-featured LAN interface flexibility is built in, so Temperature Alert easily adapts to the most basic and most complex network configurations.

Temperature Alert is provided with an AC adaptor power supply and one temperature probe, or a temperature and humidity probe (6 ft, 1.8 m) depending upon the model selected. A selection of optional temperature and humidity probe configurations is also available.

Accessories

101085

AC Power Supply

$19
AC power supply

Description

Optional AC power supply (USB to AC) for stand-alone applications and charging EL-WiFi Series products. Includes US adapter.

101017-RPA

US Power Adapter

$4.00
US Power Adapter

Description

Spare US Adapter for AC power supply 101017-2 and 101085.

101017-RPE

EU Power Adapter

$4.00
European Power Adapter

Description

Spare European Adapter for AC power supply 101017-2 and 101085.

101017-RPK

UK Power Adapter

$4.00
UK Power Adapter

Description

Spare UK Adapter for AC power supply 101017-2 and 101085.

101017-RPS

Australian Power Adapter

$4.00
Australian Power Adapter

Description

Spare Australian Adapter for AC power supply 101017-2 and 101085.

Software

Temperature Alert does not require any software to run other than a standard web browser. Everything is set up and configured through the built-in web server.

Videos

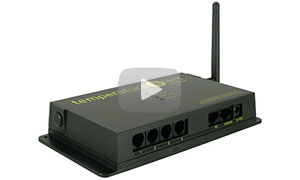

Temperature Alert
Temperature Alert

Overview of Temperature Alert, a LAN-based Temperature and Humidity Data Logger.

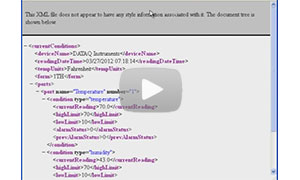

Temperature Alert XML Feed and Log Files
XML Feed and Logs

Learn about the XML feed and text log files containing historical data.
Temperature Alert Preferences Tab
Preferences Tab

The Preferences tab allows you to name your Temperature Alert data logger, choose temperature units (C or F), set the date & time and set up password protection.
Temperature Alert Connection Settings
Connection Settings

Talking to the the LAN-Based Temperature Alert data logger via a hard-wired Ethernet connection or WiFi.
