Model DI-718B-US

8-channel USB Data Logger and Data Acquisition System for DI-8B Amplifiers

Out of

This product is obsolete. Replaced by DI-4718B-E

  • Includes a DI-718B-US instrument, a 6-foot USB cable, a power supply and adapter, a 3.5mm stereo jack for remote control, an NIST-traceable calibration certificate, a screwdriver for signal connections, and software on CD. DI-8B amplifiers sold separately.
  • Bundle Deal Bundle and Save
  • Measures temperature, pressure, flow, current, voltage, and more using isolated 8B amplifiers. At least one 8B module is required. View the DI-8B amplifier selection guide
  • Low-Cost, Portable, USB Data Logger and Data Acquisition System. This product is similar to the DI-710 Series but with Signal Conditioned inputs.
  • Stand-alone data logger option allows in-the-field measurements to be saved to Secure Digital Cards (SD).
  • Eight DI-8B signal-conditioned analog inputs. For a 16 channel version see the DI-718Bx Series.
  • 14-bit analog to digital conversion.
  • Includes WinDaq Software.
  • Record up to 14,400 Hz in stand-alone mode using high speed SD card (model 101014-2G)
  • Up to 4800 Hz Sample Throughput Rate when connected to PC
  • Unlock code required for sample rates over 1,108 Hz only when using WinDaq software
  • Wide variety of measurement functions and ranges based on DI-8B module selections. Mix and match modules as needed.
  • Find out how long your data logger can record to SD memory using our Record Time Calculator

This model is soon to be discontinued. Please consider the DI-4718B-E as a direct replacement. See comparison

Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page
DI-718B Data Acquisition System
This DAQ system has 14-bit ADC resolutionThis data logger features 8 analog input channelsThis data acquisition system has two digital inputsThis data acquisition system can sample and record data at up to 4,800 samples per second throughput
This data logger has a USB interfaceThis data acquisition system can record to a removable SD cardThis data acquisition system has a 30-day Money back guaranteeThis data logger is manufactured in the United States of AmericaGet same day shipping when you order this data logger before 3PM ET


Low-cost, portable, USB data acquisition system with stand-alone capability (records to SD card) featuring 8 inputs for DI-8B signal conditioning modules (not included), a maximum throughput rate up to 14400 samples/second to flash memory. Includes USB and Power cables, bare stereo jack for remote control operations, software, and documentation.

DATAQ Instruments’ DI-718B Series is a four-product family of instruments designed for general purpose and standalone data logging applications that require signal conditioning. Interface options are USB or Ethernet. DI-718B instruments may also be purchased with or without stand-alone capability. Instruments without this option must remain tethered to a PC’s USB or Ethernet port during data acquisition and use the PC’s own program and memory to store acquired data. Instruments with the stand-alone data logging option feature a built-in socket that accepts standard Secure Digital (SD) memories to which acquired data may be stored. SD memories are the same commonly available mass storage devices used with digital cameras and MP3 players.

Compact and low cost DI-8B amplifiers may be plugged directly into the DI718B and are the world’s smallest fully functional isolated analog signal conditioners. Each DI-8B module protects, filters, amplifies, and isolates an input signal and provides an advanced signal conditioning solution for nearly any industrial measurement. The compact nature of both the DI-718B and DI-8B modules combine to form the smallest data logger/acquisition instrument in its class. All DI-718B instruments are supplied with dual, removable, 16-position screw terminal connectors to provide access to the built-in DI-8B module backplane. Instruments are housed in a small (13.81D × 10.48W × 3.81 centimeters; 5.4375D × 4.125W × 1.5H inches) enclosure consisting of an aluminum base, all-steel wraparound, and aluminum end plates.


DI-8B Amplifiers

Signal Conditioning Modules

$116–$198 ea.
DI-8B Amplifier Modules


DI-8B amplifiers offer the convenience to mix and match modules based upon measurement function and range to meet any application requirement, from the most simple to the most complex.


2GB SD Card (High Speed)

Discontinued by Pansonic
2GB High Speeed SD Card


High-speed 2GB SD memory card allows recording to the full stand-alone sample rate limit of the host data logger.


2GB SD Card

2GB SD Card


2GB SD memory card allows recording up to a 2 kHz sample throughput rate. See model 101014-2G for a faster memory solution.


SD Card Reader

SD Card Reader


USB Secure Digital Memory Card Reader connects to the USB port of any PC and allows data recorded to SD memory to be transferred to the PC for review and analysis.


DI-718B High Speed Unlock Code

WinDaq Unlock Code


Unlocks WinDaq to allow recording speeds up to 4.8 kHz throughput. Unlock Code ONLY. No CD will be shipped. Please Note: If you are ordering this software for a device you already own, you MUST provide the serial number of your device under "Order Notes" during checkout to receive the unlock code. Please allow one (1) business day for processing.


Screw Terminal Block (Bottom)

16-port screw terminal block


Replacement 16-port removable screw terminal block for BOTTOM of screw terminal block receptacle in DI-78B, DI-710, DI-718B, DI-4718B, DI-718Bx, DI-785, DI-788, and DI-808 products.


Screw Terminal Block (Top)

16-port screw terminal block


Replacement 16-port removable screw terminal block for TOP of screw terminal block receptacle in DI-78B, DI-710, DI-718B, DI-4718B, DI-718Bx, DI-785, DI-788, and DI-808 products.


Power Supply

Spare power supply for DI-710, DI-718B, and DI-1000TC DAQs


Spare power supply for DI-710, DI-718B, DI-4718B, and DI-1000TC products.


Australian Power Adapter

Australian Power Adapter


Spare Australian Adapter for AC power supply 101017-2 and 101085.


UK Power Adapter

UK Power Adapter


Spare UK Adapter for AC power supply 101017-2 and 101085.


EU Power Adapter

European Power Adapter


Spare European Adapter for AC power supply 101017-2 and 101085.


US Power Adapter

US Power Adapter


Spare US Adapter for AC power supply 101017-2 and 101085.


Power Connector

Ferrite Choke


Power Connector for DI-1000TC, DI-710, and DI-718B products.


Calibration Certificate

NIST Calibration Certificate


Re-calibration Service, this calibration certificate is included with new instruments. NIST-traceable certificate for all DI-710, DI-718B, and DI-718Bx data acquisition and data logger products. Includes both before and after data. Shipping charges do apply when ordering online. Learn more about Calibrating your device.


Mounting Brackets

Right-angle Mounting Brackets


Pair of angle mounting brackets (with mounting screws) for DI-4718 Series, DI-4108 Series, DI-4208 Series, DI-808 Series, DI-710 Series, DI-718B Series, and DI-100TC Series instruments



Data Acquisition Recording and Playback Software

Included FREE with your DI-710 purchase. Installs drivers and WinDaq recording and playback software. Includes optional Add-on software with a valid installation key. 1108Hz maximum sample rate. For higher rates purchase the unlock code under the Accessories tab.

WinDaq Data Acquisition Software

ActiveX Controls


FREE ActiveX programming solutions for Dataq Instruments products. Free sample programs available. Compatible with LabView.

DATAQ ActiveX Controls


WinDaq-to-Excel Real Time Link

Real-time data logging directly to Microsoft Excel (supports MS Office 2003 or higher). No programming required. Free Trial Version. Purchase full version on WinDaq/XL product page.

WinDaq Data Acquisition Software

Advanced CODAS


Advanced analysis software add-on to WinDaq Waveform Browser software. Allows calculated channels, derivative, integration, moving average, automatic file management, automatic scaling, and more.

Advanced CODAS


Analog Inputs
Number of Channels: 8 configured for signal conditioned inputs
Channel Configuration: Defined by DI-8B Module
Measurement Range: Defined by DI-8B Module
Accuracy: ±0.25% FSR (at 1800 S/s, averaging mode)
Resolution: ±1 part in 8,192
Input Impedance: Defined by DI-8B Module
Input offset voltage: Defined by DI-8B Module
Channel-to-channel crosstalk rejection: -75db @ 100Ω unbalance
Offset temperature coefficient: 0.25µV/°C
Digital filtering: Standard: Conditional over-sampling
Stand-alone: None
CJC Error: 1.5°C plus 8B Module
Isolation (via DI-8B Modules)
Input-to-Output: 1000VDC/Peak AC
Channel-to-Channel: 500VDC/Peak AC
A/D Characteristics
Type: Successive approximation
Resolution: 14-bit
Monotonicity: ±2 LSB
Conversion Time: 69.4µs
Scanning Characteristics
Max. throughput sample rate: Standard: 4,800 Hz
Stand-alone: 14,400 Hz*
Min. throughput sample rate: Standard: 0.0034 Hz
Stand-alone: 0.0017 Hz
Max. scan list size: 9 entries
Sample buffer size: 2kb
Calibration cycle: One year
Calibration method: Calibration Software, provided
Controls (Stand-alone models)
Single push-button: Provides manual control over Record and Standby
Digital I/O
Bits: 2 Inputs (Remote Storage and Remote Events)
Input voltage levels: Min. required “1” 2V; Max allowed “0” 0.8V
Ethernet Interface
Type: 10/100Base-T
Connector: RJ-45
Protocol: TCP/IP
Server Type: DHCP or Fixed IP
Removable Memory (Stand-alone models)
Type: Standard SD (not SDHD or SDxC)
Capacity: 16MB to 2GB
Real Time Clock (Stand-alone models)
Type: Date, hour, minute, second
Resolution: 1 second
Accuracy: 20 ppm
Transfer Rate to PC
Real Time: up to 4,800 samples per second
From Memory Card: up to 3,000 samples per second
Panel indicators: Mode LED
Panel Controls: Control push button (Stand-alone models)
Panel Slots: Accepts MMC/SD-type flash memory
Input connectors: Two, removable sixteen position terminal blocks
Operating Environment: 0°C to 70°C
Enclosure: Aluminum base with steel wrap-around
Dimensions: 5.4375 "D × 4.125 "W × 1.5 "H (13.81D × 10.48W × 3.81H cm.)
Weight: 14 oz.
Power Requirements: USB: 9 to 36 VDC, 2 watts + 8B modules
Ethernet: 9 to 36 VDC, 2.5 watts + 8B modules
Stand-alone models: Three-color LED indicating Record, Standby, and Error conditions
Standard models: Power LED

*Dependent on SD card used. Low speed SD cards can sample up to 2,000 Hz; High speed cards can sample up to 14,400 Hz. Some high speed cards cannot sample as high at 14,400 Hz but their capability can only be determined by trial and error (Model 101014-2G has been tested and approved).

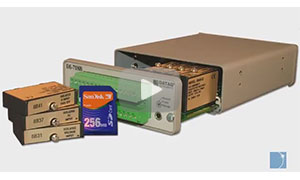

Introducing the DI-718B Acquisition and Data Logger System
Introducing the DI-718B

Measure analog voltage, temperature, process current, pressure, flow and more!
Channel configuration for DI-71X data loggers
DI-71XS Configuration

Learn how to set up and configure channels on a DI-71X for stand-alone data logging.
Exporting Data to Excel
Export data to Excel

Learn how to export data from WinDaq Waveform Browser to Microsoft Excel.
Introduction to WinDaq Data Acquisition Software
WinDaq Data Acquisition Software

Introduction to WinDaq Data Acquisition Software.
