Model DI-730-EN - OBSOLETE
8-channel Isolated High Voltage Ethernet Data Acquisition System
Due to the shortage of electronic parts this item is not available at this time. Consider the DI-4730 to replace.
- Includes a DI-730-EN instrument, a 7-foot Ethernet cable, a power supply and cable, an NIST-traceable calibration certificate, a 25-pin parallel port cable, and software on CD
- Bundle and Save
- Measurement range of ±10mV to ±1000VDC (or peak AC) over six ranges
- 1000V input-to-output and channel-to-channel isolation
- Perfect for troubleshooting AC or DC motor drive systems. Measure field voltages and currents, control signals, RPM, and more.
- Also for electric motor/generator maintenance and troubleshooting in mills and locomotion
- DI-730s easily replace bulky chart recorders
- Replace entire racks of isolation amps, high & low voltage amps, and data acquisition subsystems with one, portable, lightweight, 9 × 7 × 1½ inch instrument
- Up to 150 kHz Sample Throughput Rate
- Unlock code required for sample rates over 240 Hz only when using WinDaq software
- 14-bit resolution
- Ethernet Option supports synchronous and distributed data acquisition up to 100 meters apart. For greater distances between units, use the DI-789 Repeater Switch
- Save 30% when you trade in your old DI-730!
DI-730 High Voltage Ethernet Data Acquisition System with Windaq software. Features 8 wide range differential analog input channels, 150,000 Samples per second throughput, 14-bit measurement resolution, and full scale ranges of ±10, ±100 mV, ±1, ±10, ±100, ±1000 V full scale.
The DI-730-EN offers 14-bit resolution and 150,000 Samples per second waveform recording capability. Use the DI-730 for wide dynamic range measurements, especially those involving AC or DC electric motors. Examples include paper, aluminum, and steel mills; high speed trains; and rail and seagoing locomotion. The high sample rate, exceptional isolation, and CMR characteristics make it well-suited for maintenance and troubleshooting of DC drive systems. Other applications include RPM measurements from motor/generators, supply voltage and current measurements, and field current measurements from drive-roll, braking, and take-up motors.
Connect to any local area network (LAN). Direct Internet access is also possible. This patented (US 7,792,139 B2) communication option uses standard CAT5 cable to yield continuous data acquisition throughput rates up to 180kHz. Multiple DI-720/730 products (each equipped with an Ethernet interface) may be daisy-chained together to form an ad-hoc extended network of autonomous, yet fully synchronous data acquisition stations. Each station can sample at a different rate (up to 180kHz throughput) and still maintain full synchronization. Station separation can be as far as 100 meters.
WinDaq/Pro Unlock Code (CD)
WinDaq Data Acquisition software unlock code includes a CD (shipping charges apply). Allows you to record at speeds up to 150kHz throughput.
WinDaq/Pro+ Unlock Code (CD)
WinDaq Data Acquisition software unlock code on CD (shipping charges apply). Allows you to record at speeds up to 150kHz throughput and record different channels at different rates.
WinDaq/Pro+ Unlock Code Upgrade (CD)
Upgrade to the latest version of WinDaq/Pro+. For registered users of WinDaq/Pro+ ONLY. CD will be shipped - shipping charges apply.
WinDaq/Pro+ Unlock Code Upgrade (Email)
Upgrade to the latest version of WinDaq with the latest unlock code. For registered users of WinDaq/Pro+ ONLY. No CD will be shipped. Unlock code ONLY. Please allow at least one business day for processing.
WinDaq/Pro Unlock Code Upgrade (CD)
Upgrade to the latest version of WinDaq with the latest unlock code. For registered users of WinDaq/Pro ONLY. CD will be shipped - shipping charges apply.
WinDaq/Pro Unlock Code Upgrade (Email)
Upgrade to the latest version of WinDaq with the latest unlock code. For registered users of WinDaq/Pro ONLY. No CD will be shipped. Unlock code ONLY. Please allow at least one business day for processing.
Ethernet repeater board. Enhanced Ethernet switch expands the distance between synchronous units over 100 meters apart. Learn more.
BLACK shrouded banana plugs - both ends - silicone.
RED shrouded banana plugs - both ends - silicone.
Right-angle Plunger Hook
BLACK Right angle insulated plunger hook clip.
Right-angle Plunger Hook
RED Right angle insulated plunger hook clip.

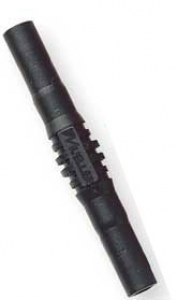

BLACK 4mm insulated banana coupler.

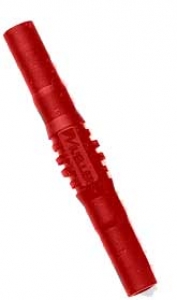

RED 4mm insulated banana coupler.
Spare 5-pin power connector for DI-718Bx, DI-720, DI-722, and DI-730 instruments.
One-foot length CAT-5 Ethernet cable.
Seven-foot length CAT-5 Ethernet cable.
AC/DC Current Probe
Power cable (US) for 100454-25R power supply (DI-720 and DI-730 Data Acquisition Systems).
Re-calibration Service, this calibration certificate is included with new instruments. NIST-traceable calibration certificate for all DI-730 data acquisition and data logger products. Shipping charges do apply when ordering online. Learn more about Calibrating your device.
Data Acquisition Recording and Playback Software
Included FREE with your DAQ hardware purchase. Record up to 240 samples per second throughput. Installs drivers and WinDaq recording and playback software. Includes optional Add-on software with a valid installation key. Record higher sample rates with an Unlock Code (see Accessories).
FREE ActiveX programming solutions for Dataq Instruments products. Free sample programs available. Compatible with LabView.
WinDaq-to-Excel Real Time Link
Real-time data logging directly to Microsoft Excel (supports MS Office 2003 or higher). No programming required. Free Trial Version. Purchase full version on WinDaq/XL product page.
Advanced analysis software add-on to WinDaq Waveform Browser software. Allows calculated channels, derivative, integration, moving average, automatic file management, automatic scaling, and more.
|Number of Channels:||8 wide range and 16SE/8DI general purpose|
|Isolation:||±1000V input-to-output and channel-to-channel|
|Analog Resolution:||14-bit, 1 part in 16,384|
|Maximum normal mode voltage (VNM):||1500VDC or peak AC|
|Maximum common mode voltage (VCM):||1000VDC or peak AC|
|Max Sample Rate:||150,000 Samples per second throughput|
|Measurement Range Full Scale:||
* Usable over +8159 to -8160 ADC counts
|Common Mode Rejection:||100dB min @ DC to 60Hz|
|Accuracy:||Vin <e; 800V ±(0.25% of full scale range ±100µV)
Vin > 800V ±(0.5% of full scale range)
|Channel-to-Channel Crosstalk:||-75 dB @100kHz into 100 Ω unbalanced|
|Input Impedance:||10MΩ for all ranges|
|Max jitter between synched units:||5 microseconds|
|Analog frequency response (each channel):||
|Number of Channels||1|
|Resolution:||12-bit, 1 part in 4096 @ 250kHz|
|Output Voltage Range:||±10V|
|Sample Throughput Rate:||40,000 standard; 80,000 bi-directional|
|Output Offset Voltage:||1 bit max @ 1kHz sample rate|
|Gain Error:||1 part in 16,384 @ 1kHz|
|Pre-trigger length:||64,000 samples|
|Post-trigger length:||64,000 samples|
|Trigger channel:||any channel|
|Trigger level hysteresis:||8-bit (256 counts)|
|Modes:||Signal averaging, maximum value, minimum value, last point, frequency, and RMS|
|Dimensions:||7.29W × 9L × 1.52H inches|
|Operating Temperature:||0 to 70°C|
|Storage Temperature:||-55 to 150°C|
|Humidity:||0 - 90% non condensing|
|Supported Applications:||ActiveX Controls; WinDaq; WinDaq/XL; WinDaq Waveform Browser|
|Connector Type:||Safety banana socket - 1 pair per channel (wide range channels)|
Introducing the DI-730

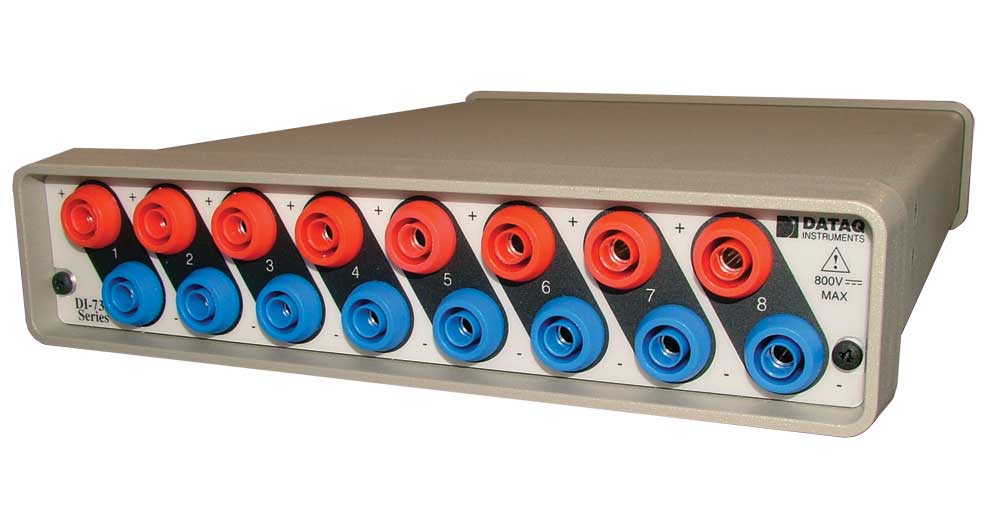

The DI-730 features eight, high voltage channels with a full scale measurement range of ±10mV to ±1000V.
Distributed and Synchronized
Distributed Synchronous Ethernet data acquisition with DI-720/730 Systems.
Export data to Excel
Learn how to export data from WinDaq Waveform Browser to Microsoft Excel.
WinDaq Data Acquisition Software
Introduction to WinDaq Data Acquisition Software.
Bundle and Save $1,500
- DI-730-EN data acquisition hardware
- 8 pair of red and black test leads
- 8 pair of red and black test plungers
- WinDaq/Pro+ high-speed data acquisition software
- WinDaq/XL ports acquired data into an Excel spreadsheet in real time
