Model DI-78B

Isolated DI-8B Amplifier Expansion Unit

$795.00
In
Stock
  • Includes a DI-78B instrument, a power jumper cable (powers through the host instrument), a 40-pin expansion jumper cable, a pair of stacking brackets, and a screwdriver for signal connections. Note: DI-8B modules are purchased separately.
  • Measures temperature, pressure, flow, current, voltage, and more using isolated 8B amplifiers
  • Accepts up to 16 isolated 8B-type amplifier modules
  • Supports DI-720 and DI-730 instruments
  • Expands measurements to include virtually any isolated, industrial-type signal
  • Mix and match DI-8B modules to precisely suit any application
  • Powered from the host instrument
  • Extremely small size (9 × 7 × 1½ Inches)
  • Can be stacked and secured to the host instrument using included stacking brackets.
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page
DI-78B Industrial Data Acquisition Expander


Description

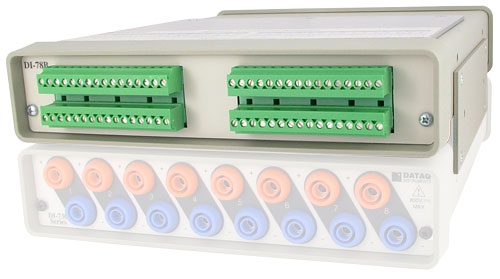

Model DI-78B is a backpack expander for DI-720 and DI-730 products. The DI-78B is a sleek unit that has exactly the same footprint and height as DI720 and DI-730 products, yielding an extremely capable yet compact solution for industrial measurements. The unit measures 9L × 7.29W × 1.52H inches (22.9L × 18.5W × 3.86H cm). It accepts up to sixteen 8B style modules and therefore brings the universe of isolated industrial measurements to DI-720 and DI-730 products. These include thermocouple, voltage, strain, frequency, process current, RTD, and potentiometric. These measurement modules may be mixed and matched within the DI-78B backpack in any combination suitable for the application. Signal connection is via four removable screw terminal blocks.

A maximum of one DI-78B may be used with either the DI-720 or DI-730 to yield as many as sixteen 8B-conditioned inputs in addition to any remaining channels provided by the host data acquisition product. The DI-78B is powered by the host DI-720 or DI-730 unit using a supplied jumper cable.

Accessories

DI-8B Amplifiers

Signal Conditioning Modules

$116–$198 ea.
DI-8B Amplifier Modules

Description

DI-8B amplifiers offer the convenience to mix and match modules based upon measurement function and range to meet any application requirement, from the most simple to the most complex.

100690

Handle

$39.00
Bracket and Handle

Description

Stainless steel handle for stacking brackets for DI-1000TC Series, DI-710 Series and DI-718B Series.

100995-MCVR

Screw Terminal Block (Top)

$10.00
16-port screw terminal block

Description

Replacement 16-port removable screw terminal block for TOP of screw terminal block receptacle in DI-78B, DI-710, DI-718B, DI-4718B, DI-718Bx, DI-785, DI-788, and DI-808 products.

100995-MCVW

Screw Terminal Block (Bottom)

$10.00
16-port screw terminal block

Description

Replacement 16-port removable screw terminal block for BOTTOM of screw terminal block receptacle in DI-78B, DI-710, DI-718B, DI-4718B, DI-718Bx, DI-785, DI-788, and DI-808 products.

Specifications

Number of Analog Inputs: 16
Measurement Range: Defined by 8B module
Not all DI-8B amplifier modules support ±excitation, but all support ±channel inputs
Operating Temperature: 0 to 70°C
Temperature Accuracy (TC modules): ±0.5% of Full Scale Range ±2ºC
Excludes 8B module inaccuracy. Ambient temperature range 20-25°C, still air, 12 watt max total 8B module power dissipation.
Signal Connections: 4 screw terminals per channel (Ch+, Ch-, Ex+, Ex-)
Power Consumption: 1.2 watts plus DI-8B module
Input-to-Output Isolation: ±1000 VDC or peak AC max
Channel-to-Channel Isolation: ±500 VDC or peak AC max
Power Requirements: 9-36VDC
Size: 9"L × 7.29"W × 1.52"H
