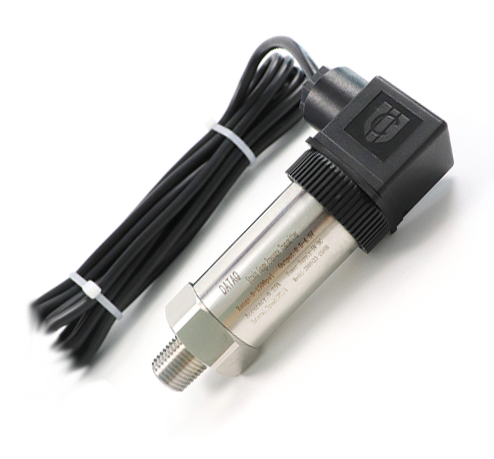

Pressure Transducers

Description

The Pressure sensor measures-14.5 up to 10000 PSI when connected to a Dataq Instruments Data Acquisition product or Data Logger.

The pressure sensor allows Dataq Instruments data acquisition and data logger units to acquire oil, fuel, air, brake fluid (DOT3/DOT4) or water pressure (PSI) information. The combination of these two products provides a compact solution, with transducer excitation provided by the data logger. The logger itself allows data to be communicated to a connected PC over either a USB or Ethernet interface.

Product Features

  • Measure pressure from -14.5 PSI to 10000 PSI
  • Made with 316 stainless steel and high temperature auto-graded plastic
  • 0.5 – 4.5V or 4-20mA linear output
  • Accuracy up to 0.5%FS.
  • Works for oil, fuel, brake fluid, water or air pressure

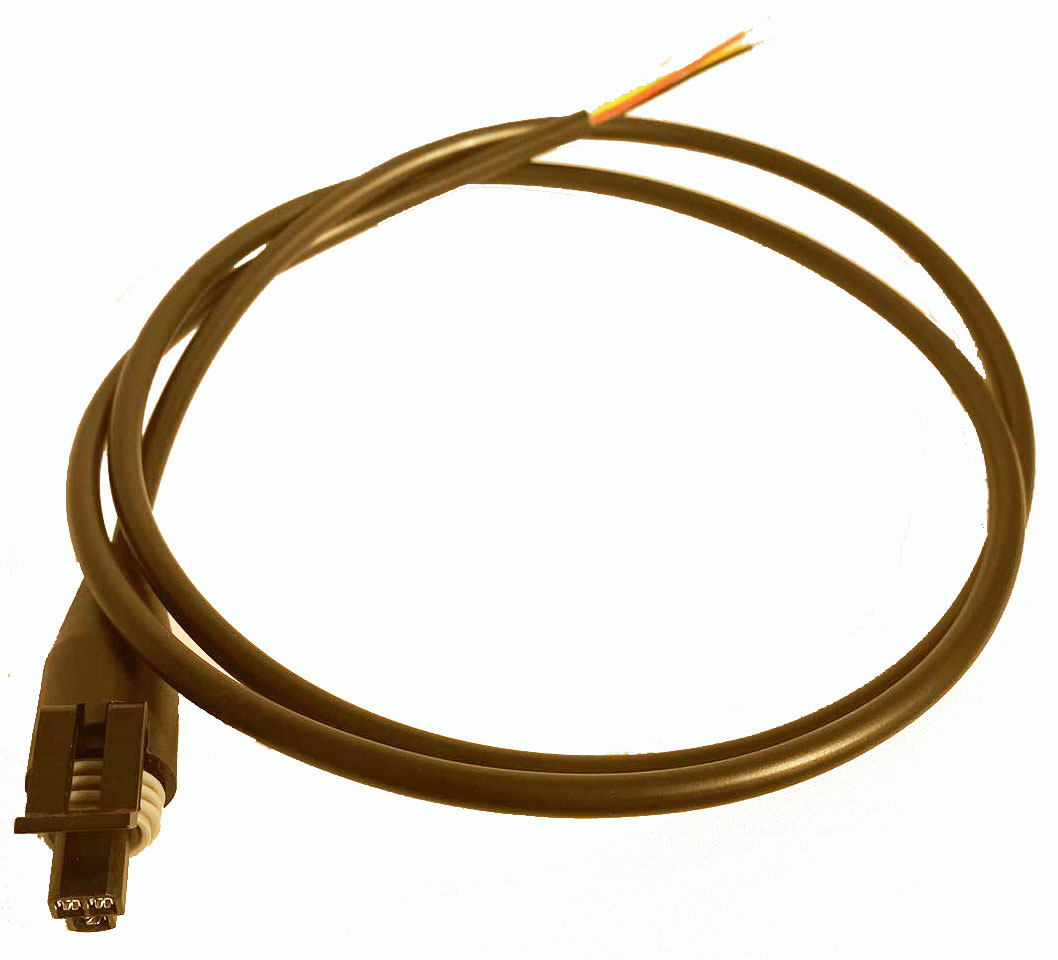

  • Mating connector and wire harness (pigtail) included
  • IP65-66 Rated
  • Compatible with many Dataq Instruments hardware products



0.5-4.5V Output vs 4-20mA Output

  0.5-4.5 V Output 4-20mA Output
Power Consumption Very Low (0.05W)

For example, DI-2108 can power eight
High (max 25mA * Supply Voltage)

For example, DI-2008 can power only three.
Supply Voltage 5V, which is available on DI-2108, 2108P, 4108 and 4208 instruments, or
use AC adaptor 101099
8-30V, which is available on DI-2008 and DI-808, or
connect to car battery, use AC adaptor 101086
Cable Length Short Long
EMC Susceptibility Low High
Installation Connect signal and ground wires to input terminals directly Shunt resistor needs to be installed
Number of wires per transducer Three: Power, Ground, Signal Two: Power and Return
Live Zero Reading Yes. The minimum live signal is 0.5V Yes. The minimum live signal is 4mA



Not all pressure transducers are built the same

The diaphgram of pressure transducers can employ different material and technologies, and each one has its pros and cons. Here is the quick comparison table among the two types we offer

Material/Technologies Gauge Diffusion Silicon Piezoresistive (High Precision) Ceramic Capactitive (Standard Precision)
Product lines

2000361-H (0.5-4.5V output)

2000361-HX (4-20mA output)

2000361-CH (Customized model)

2000361
Output

2000361-H: 0.5-4.5V

2000361-HX: 4-20mA

2000361-CH: 0.5-4.5V or 4-20mA

0.5-4.5V
Pressure Type

Gauge pressure

Customization to Absolute pressure is available

Gauge pressure
Accuracy/Sensitivity ±0.5%FS
* Ranges lower than +5 PSI has 0.5-1% accuracy
±2% FS
Medium Any gas or liquid compatible with 316L stainless steel
(Not intended for acidic medium)
Any gas or liquid compatible with ceramic
Burst Pressure For transducers of full range up to 5000 PSI, 4 times span
For transducers of full range of 10000 PSI, 26000 PSI
4 times span
Overload Pressure For transducers of full range up to 5000 PSI, 2.5 times span
For transducers of full range of 10000 PSI, 14500 PSI
2.5 times span
Response Time 1ms 1ms
Working Temperture Range -40°C to 85°C -20°C to 70°C
Insulation Resistance 100ma 500VDC 100ma 500VDC
3D Model 1/4 NPT version
Process Connection (Thread)

1/4" NTP-18 thread for 10000 psi
1/8" NTP-27 thread for the others

1/8" NTP-27 thread
Electromagnetism Compatibility EN61326-1:2013
EN61326-2-2:2013
The EMC Directive2014/30/EU
EN61326-1:2013
EN61326-2-2:2013
The EMC Directive2014/30/EU
Supply Voltage 4.75-5.25V for 2000361-H (0.5-4.5V output model)

8-30V for 2000361-HX (4-20mA output model)
4.75-5.25V
Max Power Consumption

0.05W for 2000361-H (0.5-4.5V output model)

25mA*SupplyVoltage for 2000361-HX (4-20mA output model)

0.05W
Sealing Material NBR rubber
NBR rubber
Including Wiring Harness 3 ft 3 ft
Standard Ranges

-14.5 to 15, 30 psi

0 to -14.5, 15, 30, 50, 60, 100, 150, 200, 300, 500, 1000, 1500, 2000, 3000, 5000, 10000 psi

Customization available

0 to 30, 50, 60, 100, 150, 200, 500 psi
Customized Ranges (-14.5 psi to 10000 psi)

All ranges start at 0 psi. If you need ranges started other than 0 psi, please email us to request quote and lead time estimation.

For range between 0 to 99 psi, any integer numbers*

For ranges between 100-999 psi, any integer in the format of XX0, for example, 130 psi.

For ranges between 1000-9999 psi, any integer in the format of XX00, for example, 1300 psi.

* Ranges lower than +5 PSI has 0.5-1% accuracy

NA
Cost

$ 68 for 2000361-H (0.5-4.5V output model)

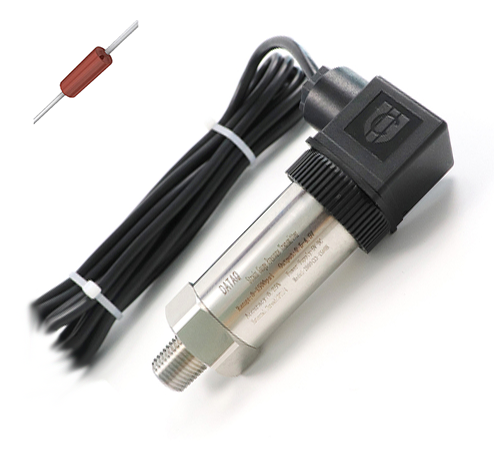

$ 79 for 2000361-HX (4-20mA output model, 250 Ohm shunt resistor included)

$ 99 for 2000361-CH (Typical lead time, 8 weeks)

$ 39.99
